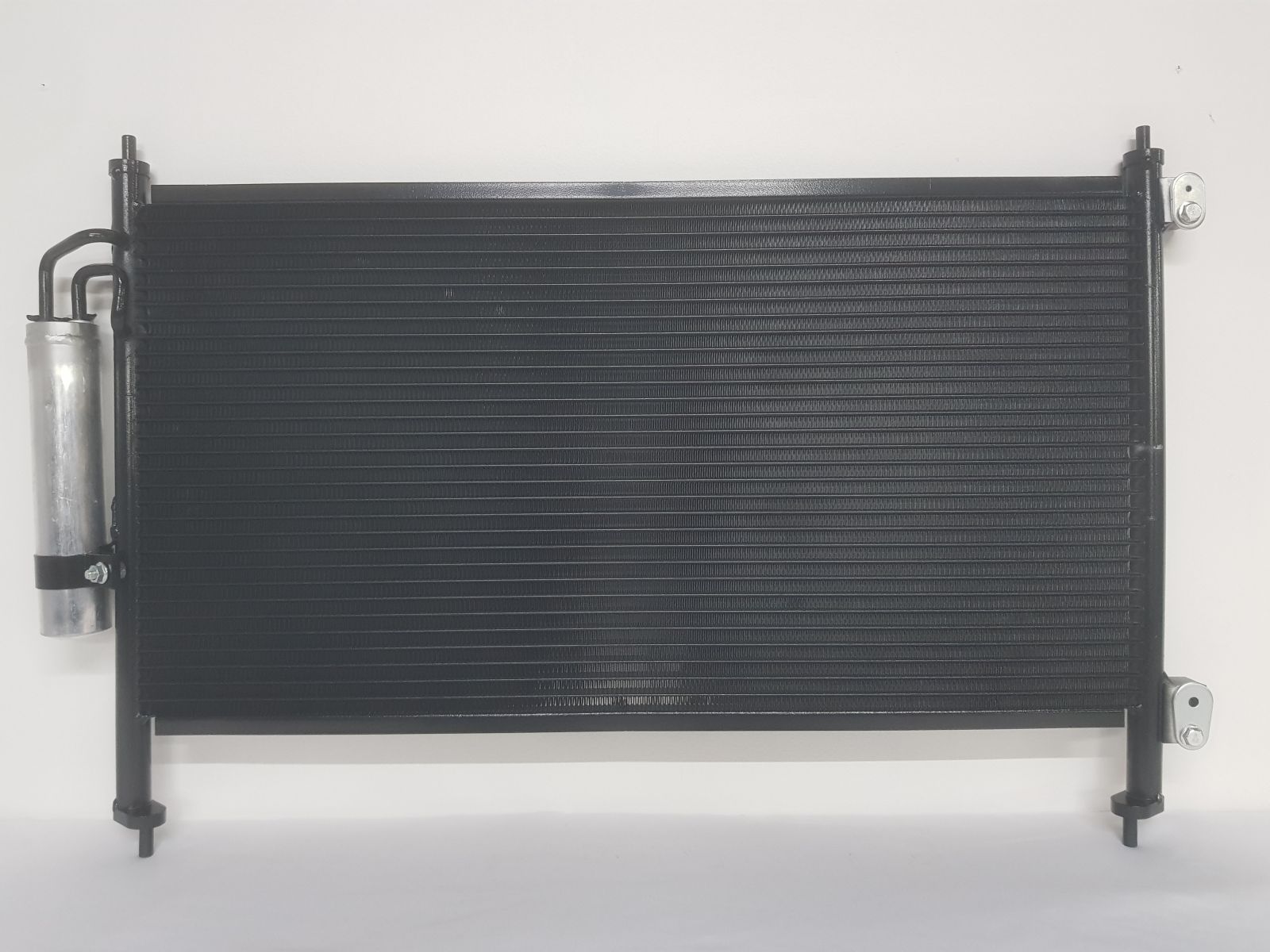

A4C Aircon Condenser CON1335

Description

The condenser is a heat exchanger responsible for the refrigerant state change in the AC system.

The condenser is placed at the front of the car and is typically attached to other heat exchangers in the engine compartment like engine cooling radiator or intercooler.

The role of the condenser is to ensure that the state of the refrigerant changes from gaseous to liquid form. The change of state is called the condensation process where the refrigerant heat is extracted and exchanged with the ambient air.

Our condensers are carefully selected from the most reliable manufacturing sources available. All our condensers are zinc coated and are supplied with a three year warranty.

Core length: 640mm
Core width: 400mm
Core depth: 20mm
Port inner dia: 15.1mm / 10.0mm
Material: Aluminium, corrosion protected
Refrigerant: for R134a

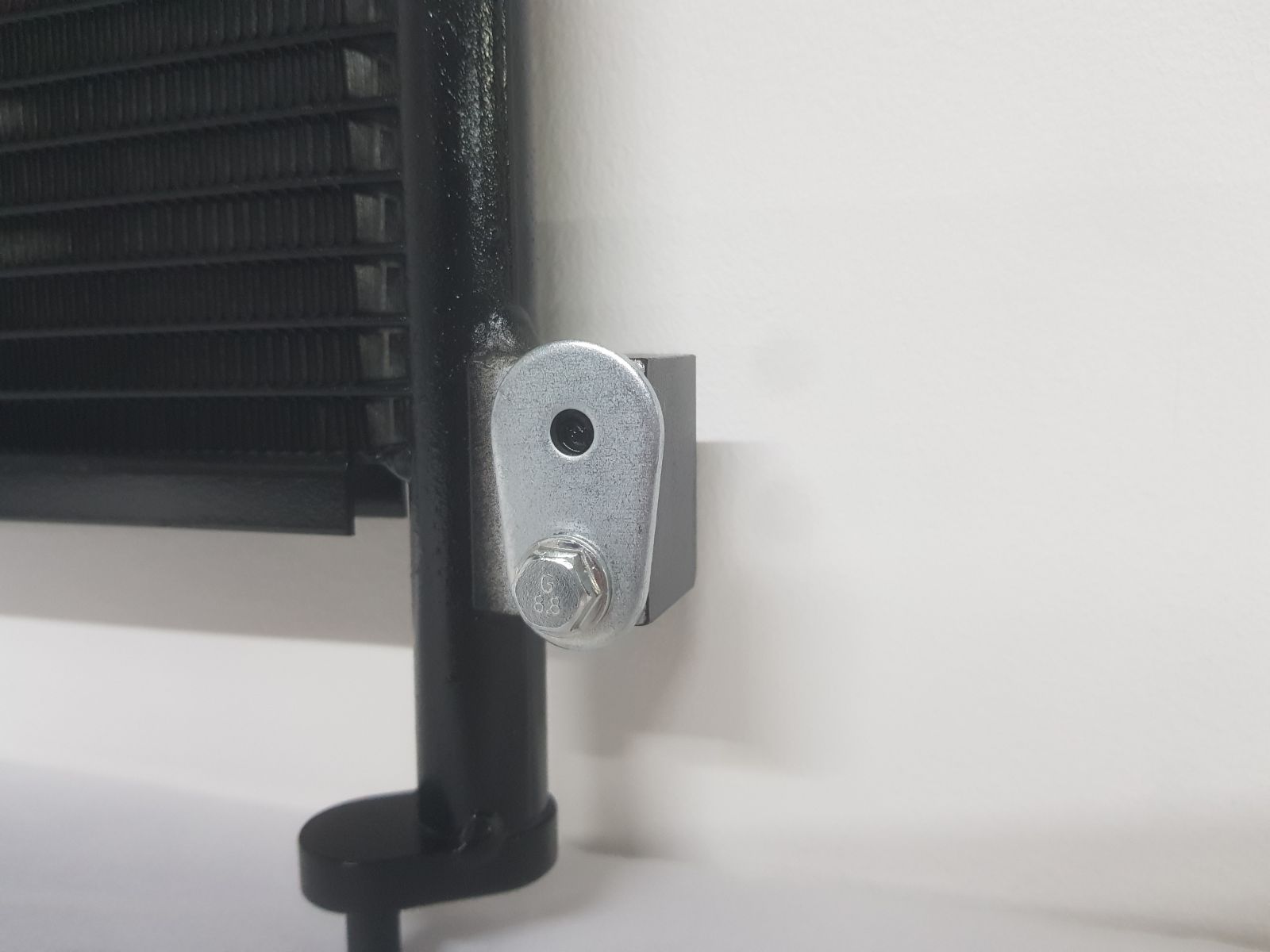

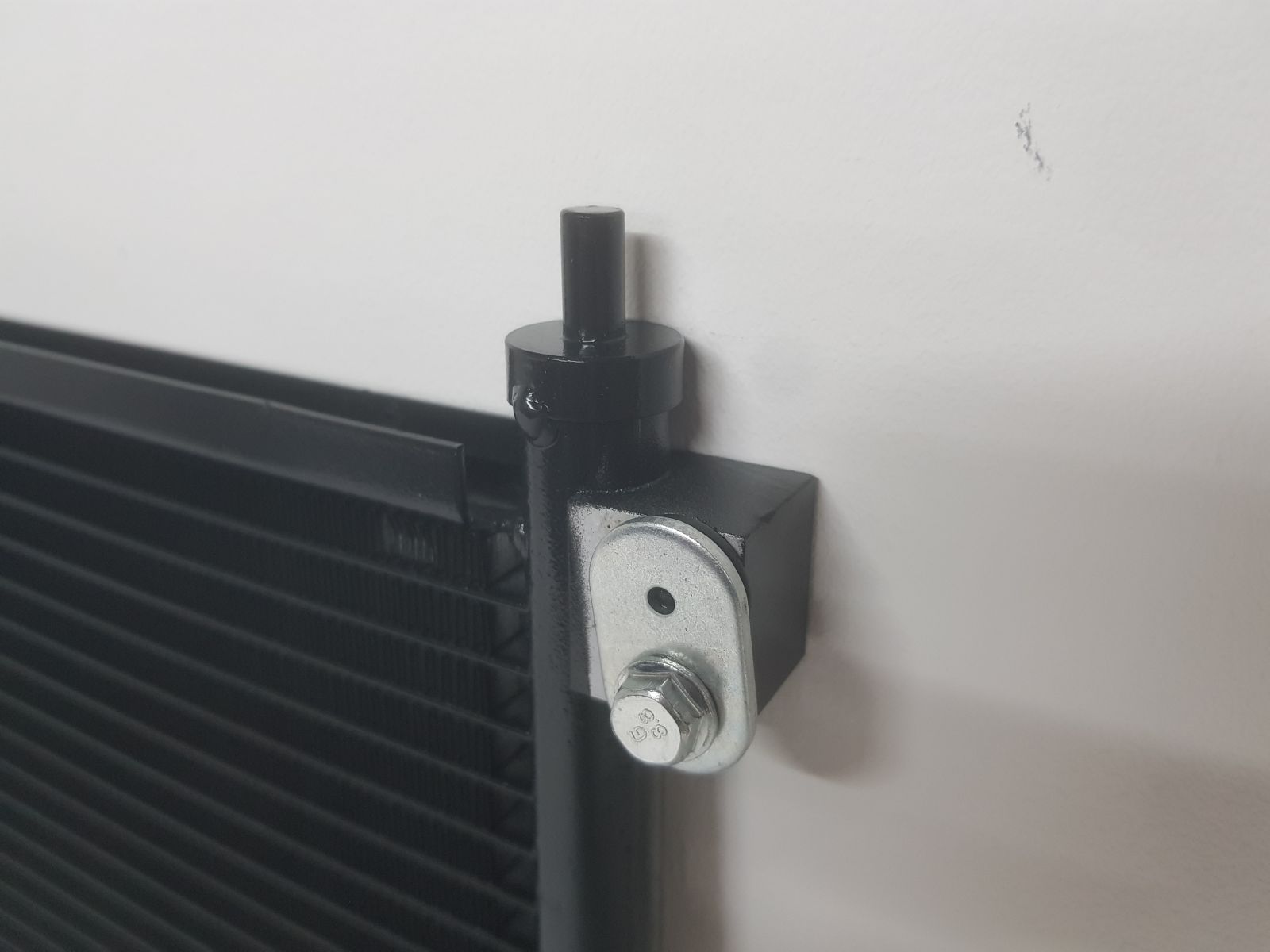

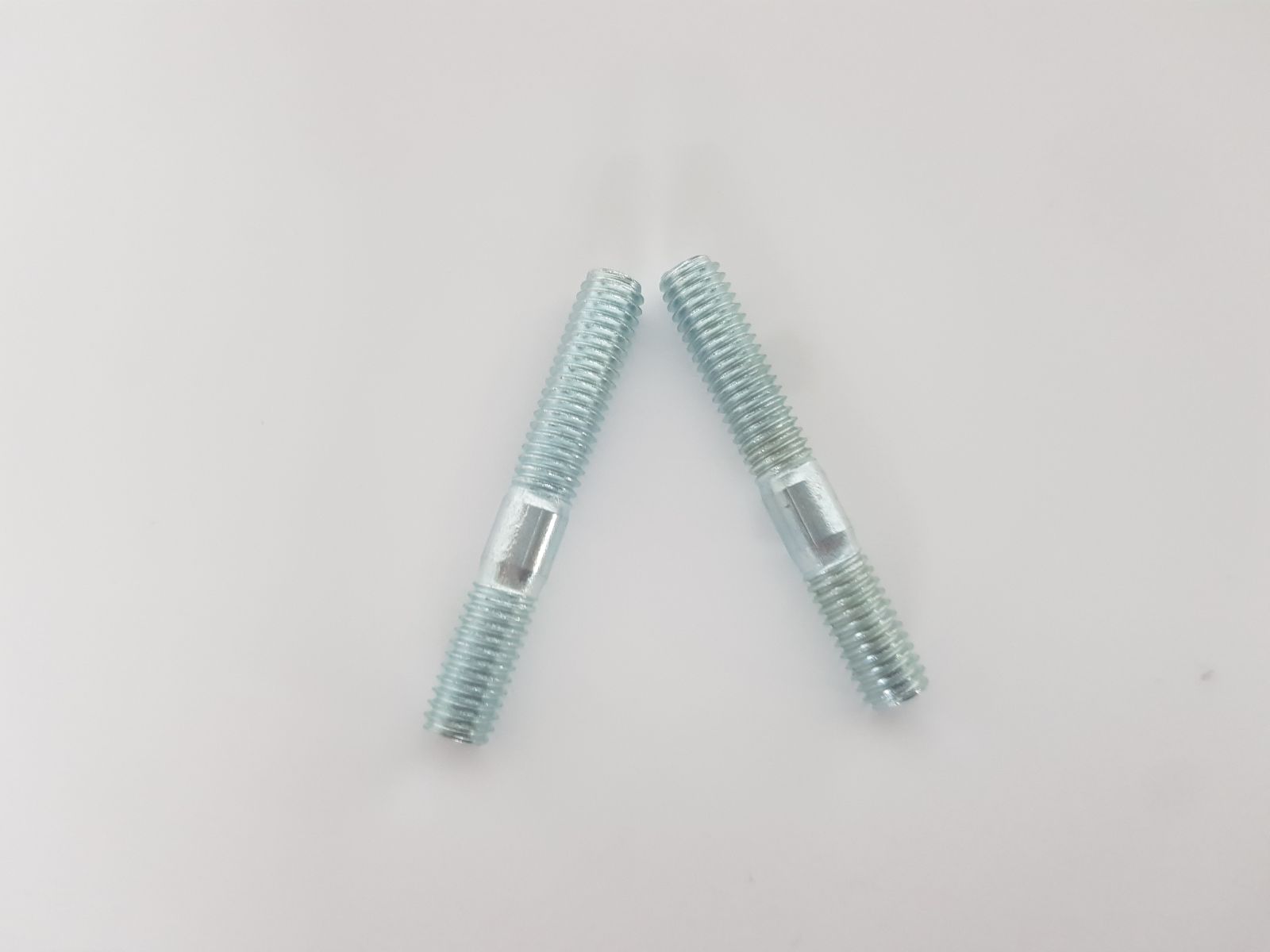

Included: with dryer, pipe fixing studs

Replaces OEM reference(s):
HONDA: 80100SMGE02 | HONDA: 80110SMGE010 | HONDA: 80110SMGE02

Replaces aftermarket reference(s):
AUTO AIR: 16-1335 | AVA: HD5213 | AVA: HD5213D | DELPHI: CF20196 | DENSO: DCN40007 | FRIGAIRE: 08193019 | FRIGAIRE: 08193019 | HELLA: 8FC351303641 | HELLA: 8FC351303641 | MAHLE: AC464000S | NISSENS: 94875 | NRF: 35763 | STANDARD: F4AC1062 | VALEO: 814333 | WAECO: 8880400558
