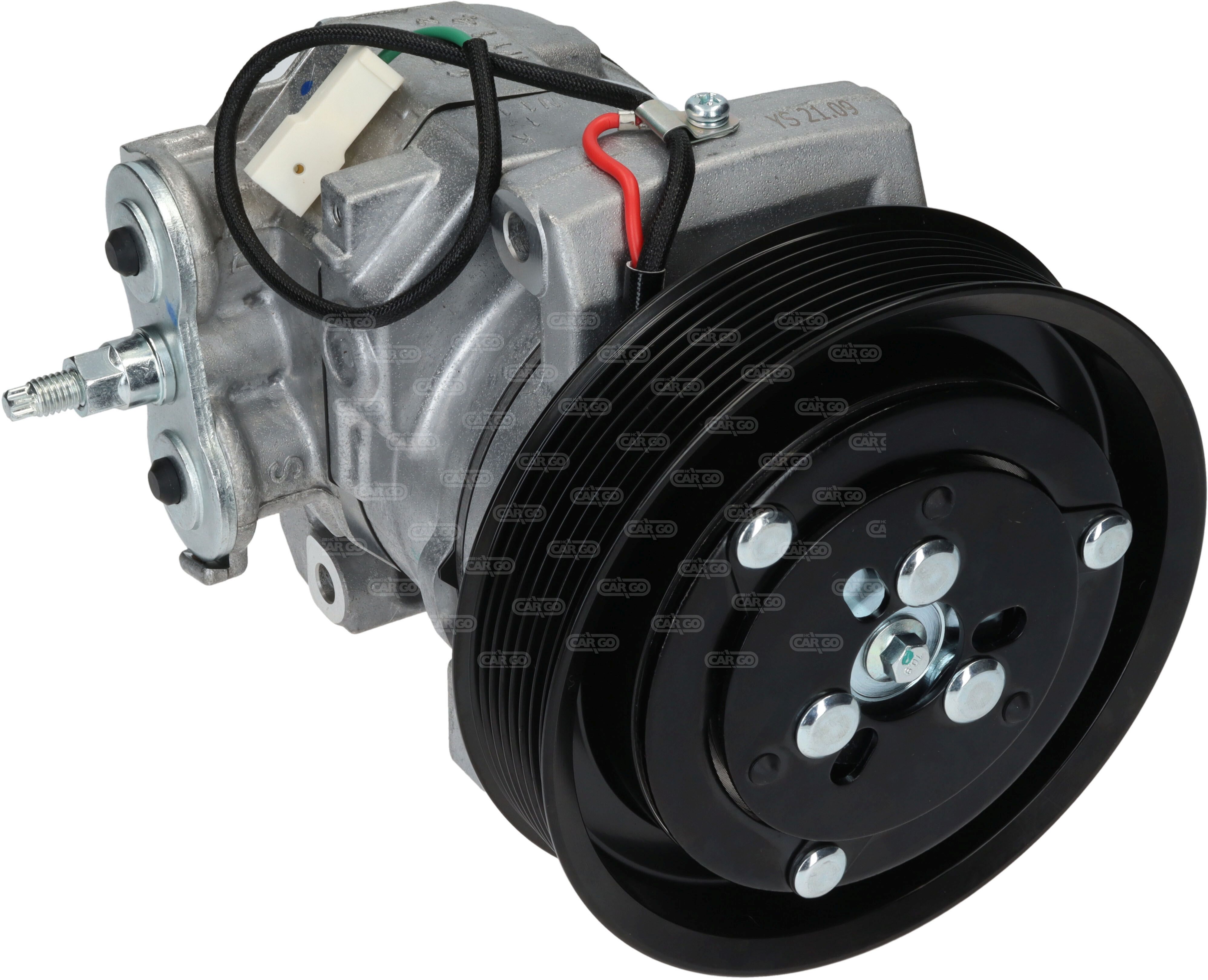

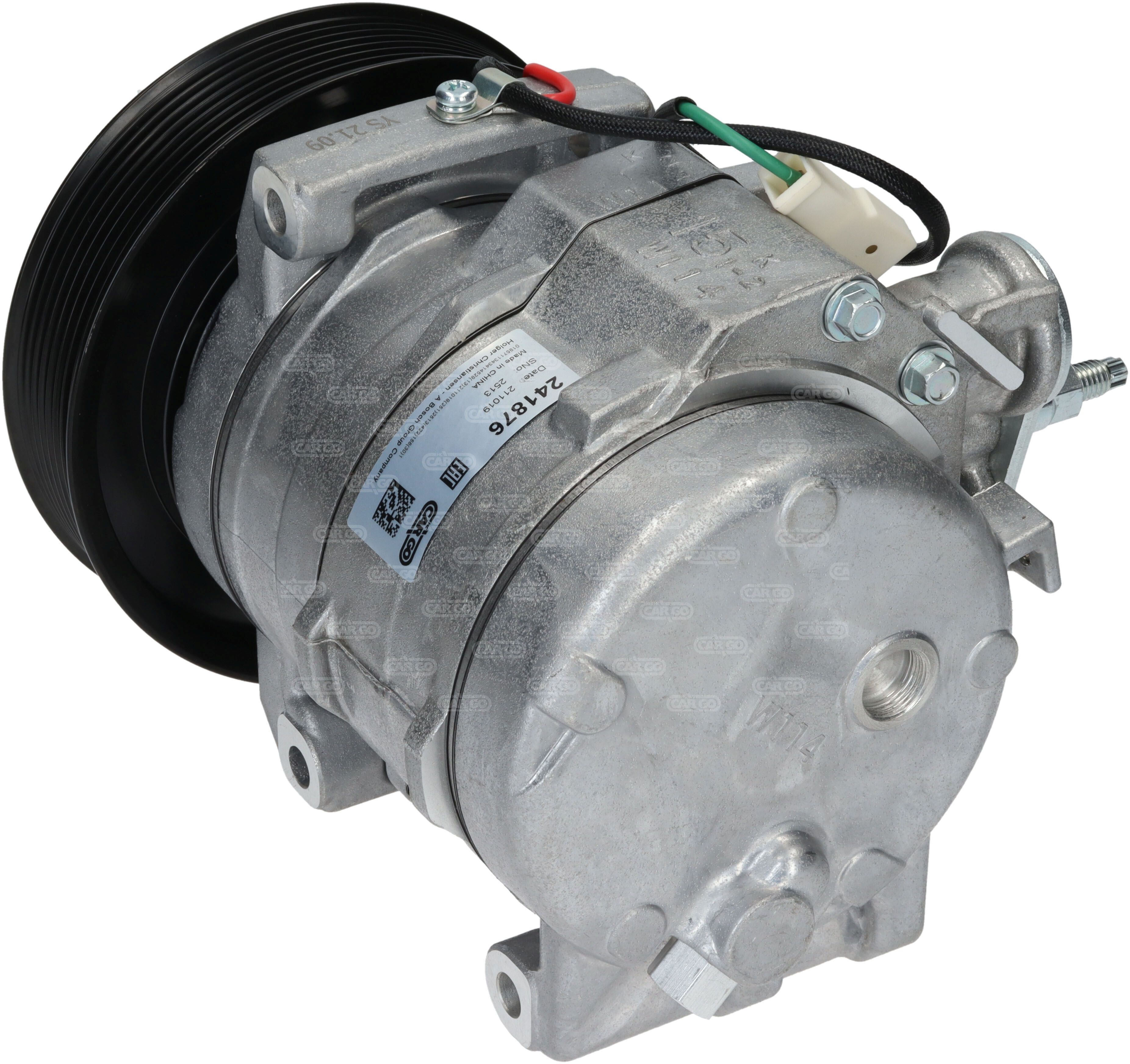

HC CARGO Aircon Compressor 241876

Description

Voltage: 24
Family type: 10S15C
Mount. holes/front 2: 8.50
Dist. between holes 1: 80.00
Dist. between holes 2: 80.00
Dist. between holes 4: 80.00
Dist. between mount. bracket/hole: 87.00
Dist. between mount. bracket/hole 3: 128.00
Position: 15
Position 2: 10
Length mm: 211.00
Rotation: CW
Inlet: 16.60
Outlet: 16.60
Pulley Dist. B1: 62.00
Pulley Dist. B2: 37.00
Pulley Grooves: 8
Pulley type: SP
Pulley OD mm: 140.00
Oil type: PAG 46
Oil capacity: 150 ml.
Refrigerant: R134a
O-ring: w/o
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Denso: 447280-1840, Mercedes Benz: 4722300111, Mercedes Benz: A4722300111

Replaces aftermarket reference(s):
