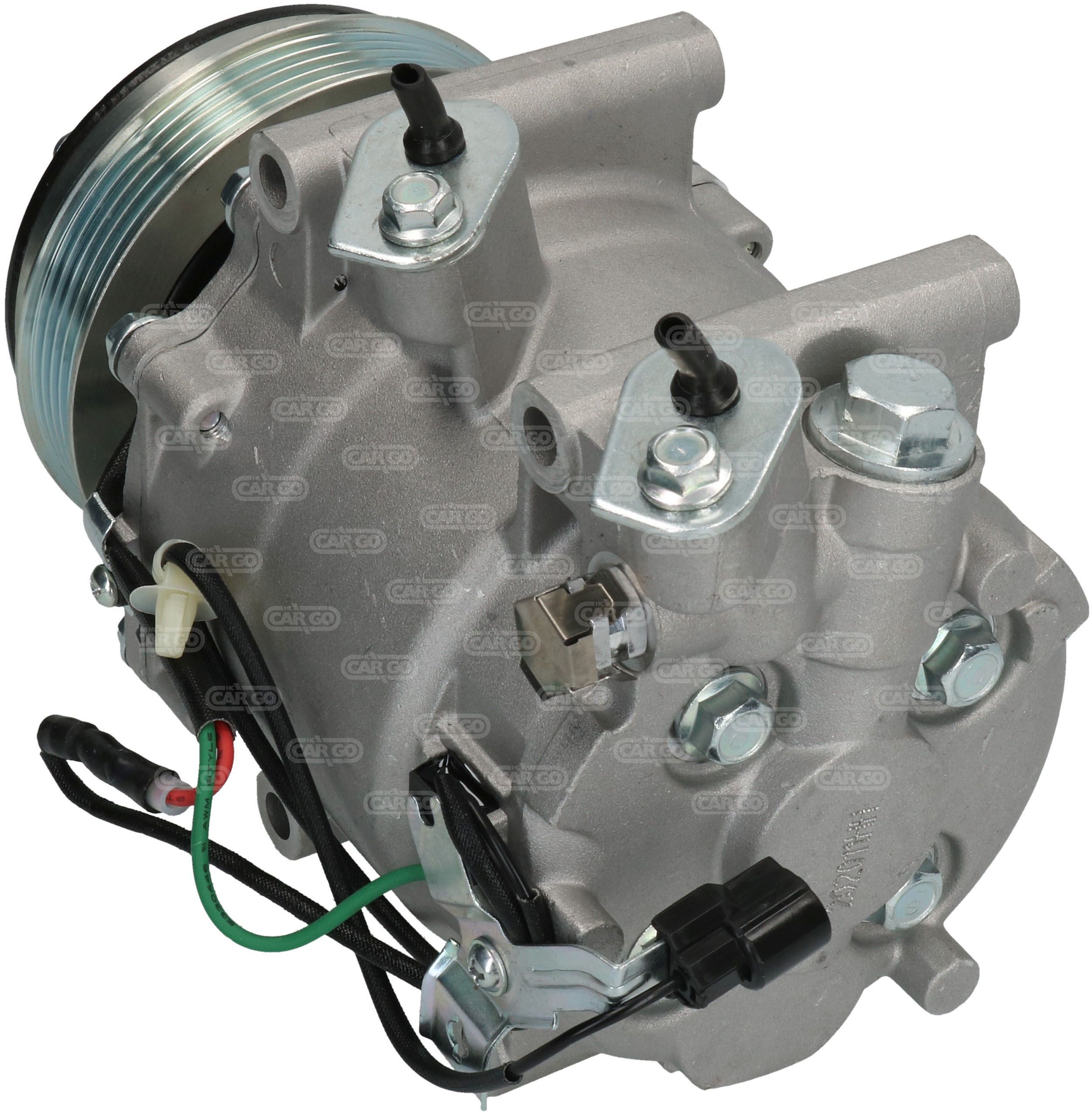

HC CARGO Aircon Compressor 241315

Description

Voltage: 12
Family type: HSK-70
Mount. holes/front 2: 9.50
Dist. between holes 1: 84.00
Dist. between holes 2: 84.00
Dist. between holes 3: 84.00
Dist. between holes 4: 84.00
Dist. between mount. bracket/hole: 71.00
Dist. between mount. bracket/hole 2: 84.00
Dist. between mount. bracket/hole 3: 138.00
Dist. between mount. bracket/hole 4: 138.00
Position: 58
Position 2: 58
Length mm: 225.00
Inlet: 18.30
Outlet: 15.60
Pulley Dist. B1: 62.00
Pulley Dist. B2: 47.50
Pulley Grooves: 5
Pulley OD mm: 112.00
Pulley: w/
Oil type: PAG 46
Oil capacity: 135 ml.
Refrigerant: R134a
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Honda: 38810-RB0-E02

Replaces aftermarket reference(s):
FrigAir: 292020208
