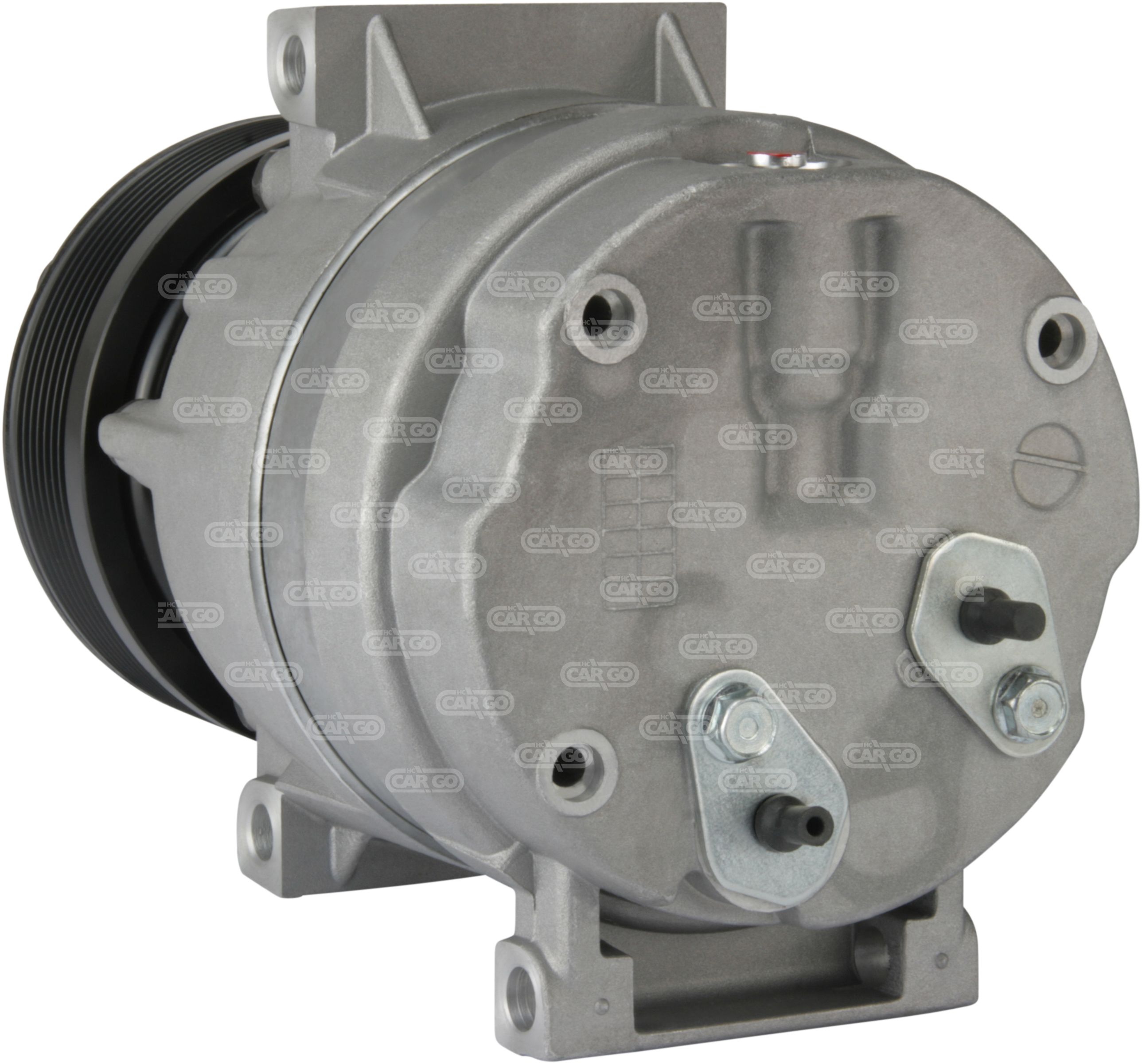

HC CARGO Aircon Compressor 241006

Description

Voltage: 12
Family type: V5
Mount. holes/front 2: 10.00
Dist. between holes 1: 80.00
Dist. between holes 2: 80.00
Dist. between mount. bracket/hole 2: 101.00
Position: 2
Position 2: 50
Length mm: 204.00
Inlet: 20.60
Outlet: 14.30
Pulley Dist. B1: 64.00
Pulley Dist. B2: 42.50
Pulley Grooves: 7
Pulley type: SP
Pulley OD mm: 119.00
Oil type: PAG 150
Oil capacity: 220 ml.
Refrigerant: R134a
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Delphi: 1140888, General motor: 7711135846, Nissan: 4405239, Nissan: 8200895038, Nissan: 27630-00q0j, Nissan: 27630-00Q1B, Nissan: 27630-00Q1D, Nissan: 27630-00Q1J, Nissan: 27630-00Q3M, Nissan: 2763000QAB, Opel: 4417713, Opel: 4418826, Opel: 4435072, Opel: 93191202, Opel: 93198627, Opel: 8200832990, Renault: 4405239, Renault: 8200200671, Renault: 8200678510, Renault: 8200763772, Renault: 8200795534, Renault: 8200832990, Renault: 8200895038, Renault: 8200950038, Renault: 8200979500, Renault: 8201250900, Renault: 2763000Q2C, Sanden: 1140769, Vauxhall se Opel: 09121072

Replaces aftermarket reference(s):
Ava (Quality Cooling): RTK440, Delphi: TSP0155897, Elstock: 51-0031, FrigAir: 92010949, Hella: 8FK351340-981, Nissens: 89435, NRF: 32481, Teamec: 8600097, Thermotec: KTT090017, Valeo: 699861
