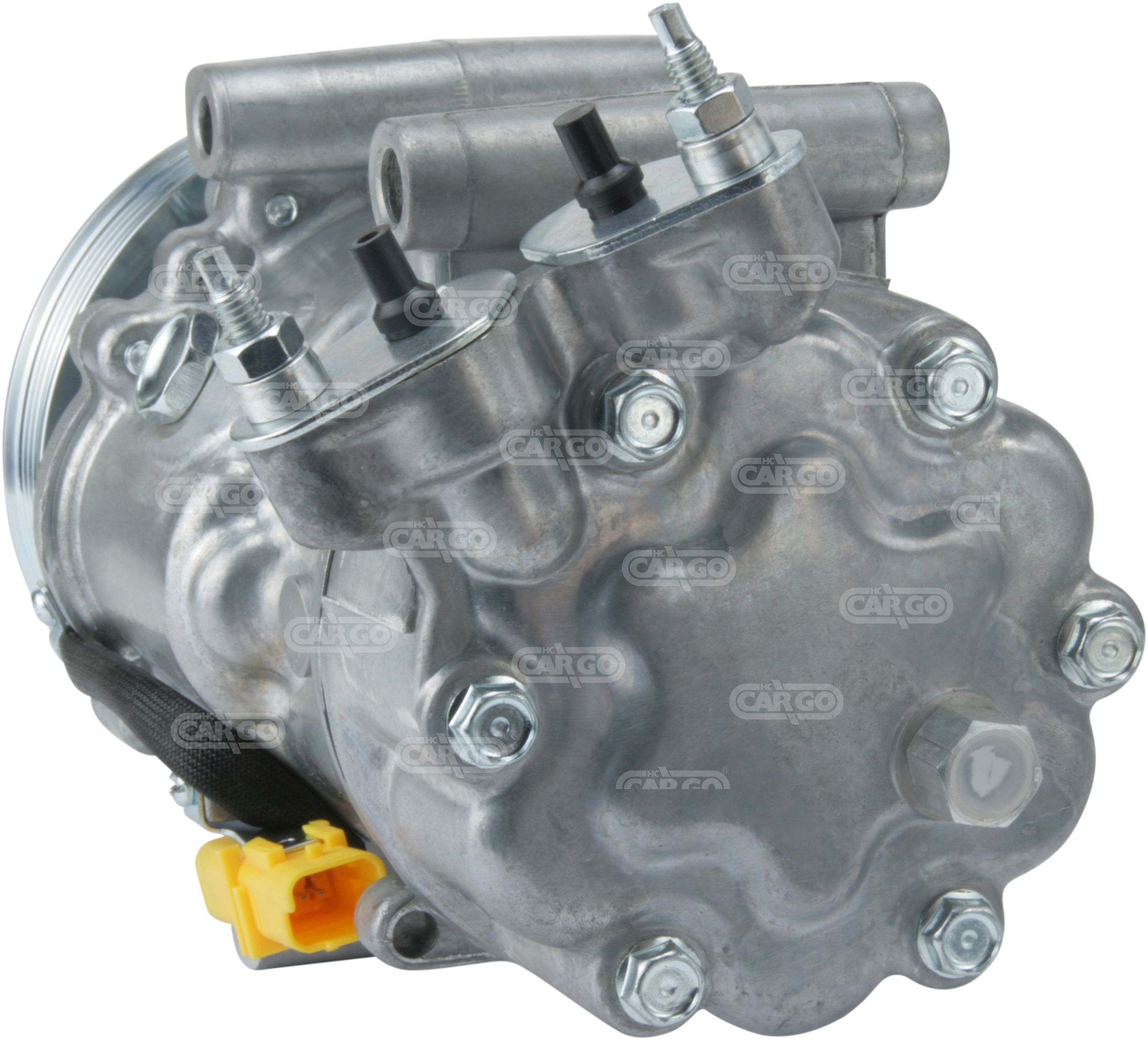

HC CARGO Aircon Compressor EasyFit 240964

Description

Voltage: 12
Family type: SD6V12
Mount. holes/front 2: 10.00
Dist. between holes 1: 80.00
Dist. between holes 2: 80.00
Dist. between mount. bracket/hole 2: 92.00
Position: 55
Position 2: 58
Length mm: 220.00
Inlet: 20.65
Outlet: 14.35
Pulley Dist. B1: 56.50
Pulley Dist. B2: 39.00
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 119.00
Oil type: PAG 46
Oil capacity: 135 ml.
Refrigerant: R134a
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
BMW: 2758145, BMW: 2758433, BMW: 6942501, BMW: 64522758145, BMW: 64522758433, BMW: 64526942501, BMW: 64529213175, BMW: 64529223392, BMW: 64529233392, Citroen, see Peugeot: 6453XJ, Peugeot: 6453QG, Sanden: SD6V12-1457, Sanden: SD6V12-1457F, Sanden: SD6V121914, Sanden: SD6V121923, Sanden: SD6V121929, Volkswagen: 9213175, Volkswagen: 9223392

Replaces aftermarket reference(s):
FrigAir: 92020220, Hella: 8FK351322-401, Hella: 8FK351334-161, Teamec: 8600189
