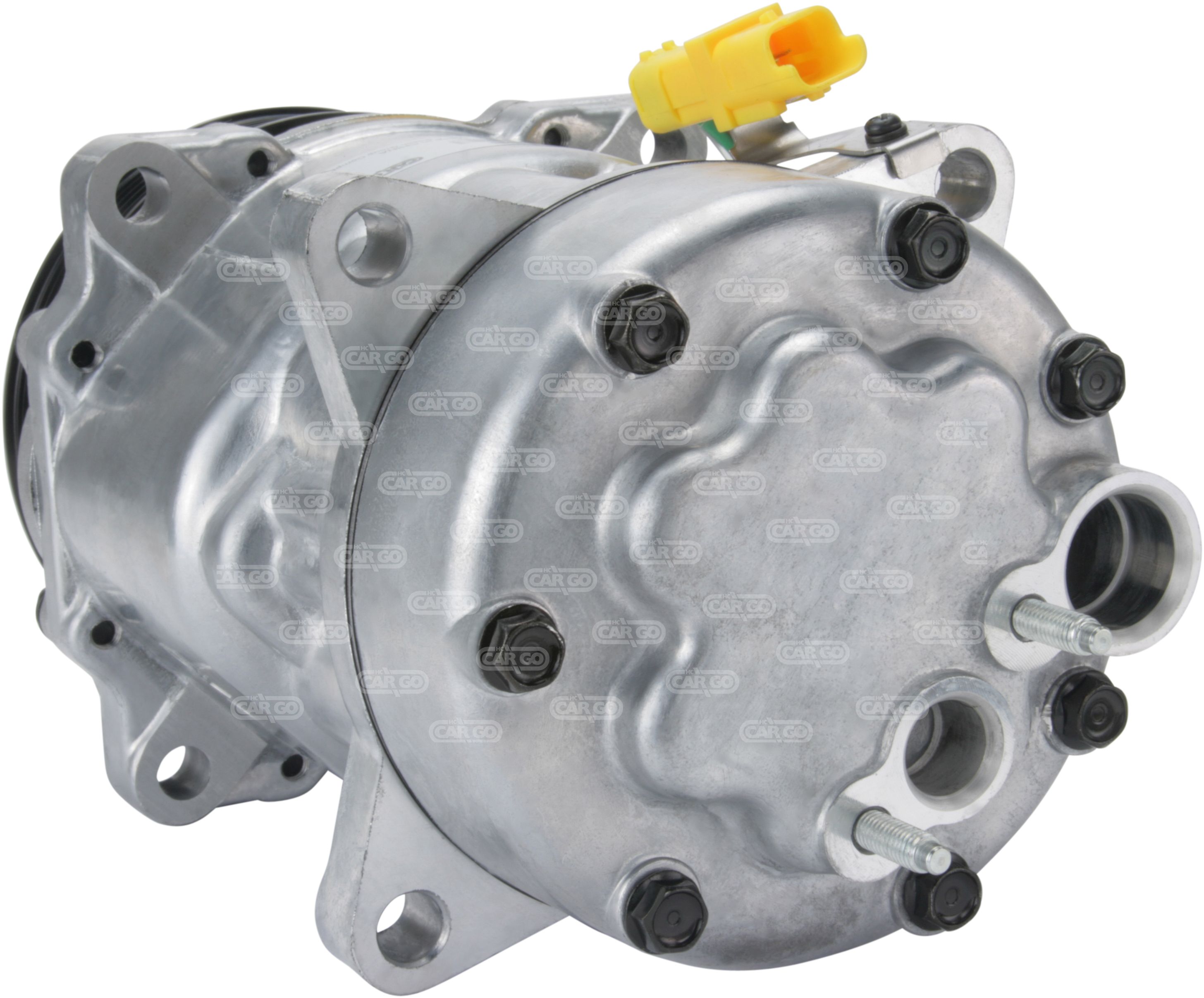

HC CARGO Aircon Compressor EasyFit 240888
Description
Voltage: 12
Family type: SD7V16
Mount. holes/front 2: 10.00
Mount. holes/front: 10.00
Dist. between holes 1: 104.00
Dist. between holes 2: 104.00
Dist. between holes 3: 104.00
Dist. between holes 4: 104.00
Dist. between mount. bracket/hole: 83.30
Dist. between mount. bracket/hole 2: 83.30
Position: 15
Position 2: 25
Length mm: 250.00
Rotation: CW
Bracket thickness B3: 14.40
Inlet: 20.60
Outlet: 14.30
Pulley Dist. B1: 46.50
Pulley Dist. B2: 43.00
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 119.00
Oil type: PAG 46
Oil capacity: 135 ml.
Refrigerant: R134a
O-ring: w/
Remarks: Please pay attention to the connector.
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.
Replaces OEM reference(s):
Peugeot: 648767, Peugeot: 9639109580, Peugeot: 9646416780, Peugeot: 9655421780, Peugeot: 9659231580, Peugeot: 9687437780, Peugeot: 9687438080, Peugeot: 6453JN, Peugeot: 6453JQ, Peugeot: 6453LQ, Peugeot: 6453LR, Peugeot: 6453LX, Peugeot: 6453RY, Peugeot: 6453TE, Peugeot: 6453TF, Peugeot: 6453YT, Sanden: sd7v16-1240, Sanden: SD7V16-1268
Replaces aftermarket reference(s):
Delphi: TSP0155337, Elstock: 51-0043, FrigAir: 920.10198, FrigAir: 92010198, Hella: 8FK351127-491, Hella: 8FK351127-991, Nissens: 89032, NRF: 32198, Peugeot: 6453RZ, Teamec: 8645009, Teamec: 8646008, Teamec: 8646009, Valeo: 699272, Valeo: 699772, Waeco: 8880100188
Additional information
Weight | 6.93 kg |
---|---|
Brand | HC Cargo |
MPN | 240888 |
EAN | 5711343123275 |
Product Group | Compressors |
Product Quality | Aftermarket |
Only logged in customers who have purchased this product may leave a review.
Make | Model | Engine | Year |
---|---|---|---|
Citroën | Berlingo | 1.9 D 4WD Diesel MPV | 1998 - 2005 |
Citroën | Berlingo | 1.9 D 70 4WD Diesel Van-Based MPV | 1998 - 2006 |
Citroën | Berlingo | 1.9 D 70 Diesel Van-Based MPV | 1999 - 2011 |
Citroën | Berlingo | 1.9 D Diesel MPV | 1998 - 2005 |
Citroën | Berlingo | 2.0 HDi 4x4 Diesel MPV | 2002 - 2005 |
Citroën | Berlingo | 2.0 HDI 90 4WD Diesel Van-Based MPV | 2000 - 2005 |
Citroën | Berlingo | 2.0 HDI 90 Diesel MPV | 1999 - 2005 |
Citroën | Berlingo | 2.0 HDI 90 Diesel Van-Based MPV | 1999 - 2011 |
Citroën | C5 | 2.0 HDi Diesel Estate | 2001 - 2004 |
Citroën | C5 | 2.0 HDi Diesel Estate Van | 2002 - 2004 |
Citroën | C5 | 2.0 HDi Diesel Hatch | 2001 - 2004 |
Citroën | C5 | 2.2 HDi Diesel Estate | 2001 - 2004 |
Citroën | C5 | 2.2 HDi Diesel Estate | 2004 |
Citroën | C5 | 2.2 HDi Diesel Hatch | 2001 - 2004 |
Citroën | C5 | 2.2 HDi Diesel Hatch | 2004 |
Citroën | C8 | 2.0 HDi Diesel MPV | 2002 |
Citroën | C8 | 2.0 Petrol Van-Based MPV | 2004 - 2011 |
Citroën | C8 | 2.2 HDi Diesel MPV | 2002 |
Citroën | C8 | HDi 110 Diesel Van-Based MPV | 2003 - 2009 |
Citroën | C8 | HDi Diesel Van-Based MPV | 2003 - 2006 |
Citroën | Xsara | 1.9 D Diesel Coupe | 1999 - 2005 |
Citroën | Xsara | 1.9 D Diesel Estate | 1998 - 2005 |
Citroën | Xsara | 1.9 D Diesel Hatch | 1998 - 2005 |
Citroën | Xsara | 2.0 HDi 109 Diesel Coupe | 2001 - 2005 |
Citroën | Xsara | 2.0 HDi 109 Diesel Estate | 2001 - 2005 |
Citroën | Xsara | 2.0 HDi 109 Diesel Hatch | 2001 - 2005 |
Citroën | Xsara | 2.0 HDI 90 Diesel Coupe | 1999 - 2005 |
Citroën | Xsara | 2.0 HDI 90 Diesel Estate | 1999 - 2005 |
Citroën | Xsara | 2.0 HDi 90 Diesel Hatch | 1999 - 2005 |
Citroën | Xsara | 2.0 HDi Diesel Estate Van | 2000 - 2005 |
Citroën | Xsara Picasso | 2.0 HDi Diesel MPV | 1999 - 2011 |
Fiat | Ulysse | 2.0 JTD Diesel MPV | 2002 - 2006 |
Fiat | Ulysse | 2.0 JTD Diesel MPV | 2003 - 2006 |
Fiat | Ulysse | 2.2 JTD Diesel MPV | 2002 - 2006 |
Lancia | Phedra | 2.2 JTD Diesel MPV | 2002 - 2010 |
Peugeot | 307 | 2.0 HDI 110 Diesel Estate | 2002 - 2009 |
Peugeot | 307 | 2.0 HDi 110 Diesel Hatch | 2000 - 2007 |
Peugeot | 307 | 2.0 HDI 90 Diesel Estate | 2002 - 2008 |
Peugeot | 307 | 2.0 HDi 90 Diesel Hatch | 2000 - 2007 |
Peugeot | 406 | 2.0 HDI 110 Diesel Estate | 1999 - 2004 |
Peugeot | 406 | 2.0 HDi 110 Diesel Estate | 2001 - 2004 |
Peugeot | 406 | 2.0 HDI 110 Diesel Saloon | 1998 - 2001 |
Peugeot | 406 | 2.0 HDi 110 Diesel Saloon | 2001 - 2004 |
Peugeot | 406 | 2.0 HDI 90 Diesel Estate | 1999 - 2004 |
Peugeot | 406 | 2.0 HDI 90 Diesel Saloon | 1999 - 2004 |
Peugeot | 607 | 2.0 HDI Diesel Saloon | 2000 - 2005 |
Peugeot | 607 | 2.0 HDi Diesel Saloon | 2001 - 2004 |
Peugeot | 607 | 2.2 HDi Diesel Saloon | 2000 - 2006 |
Peugeot | 807 | 2.0 16V Petrol MPV | 2005 |
Peugeot | 807 | 2.0 HDi Diesel MPV | 2002 |
Peugeot | 807 | 2.0 HDi Diesel MPV | 2004 - 2006 |
Peugeot | 807 | 2.0 HDi Diesel Van-Based MPV | 2002 - 2006 |
Peugeot | 807 | 2.0 HDi Diesel Van-Based MPV | 2004 - 2006 |
Peugeot | 807 | 2.2 HDi Diesel MPV | 2002 |
Peugeot | 807 | HDi Diesel Van-Based MPV | 2004 - 2006 |
Peugeot | Boxer | 2.8 HDi Diesel Bus | 2004 |
Peugeot | Partner | 1.9 D 4x4 Diesel MPV | 2004 - 2005 |
Peugeot | Partner | 1.9 D 4x4 Diesel Van-Based MPV | 2004 - 2011 |
Peugeot | Partner | 2.0 HDi 4x4 Diesel MPV | 2004 - 2005 |
Peugeot | Partner | 2.0 HDi 4x4 Diesel Van-Based MPV | 2004 - 2005 |
