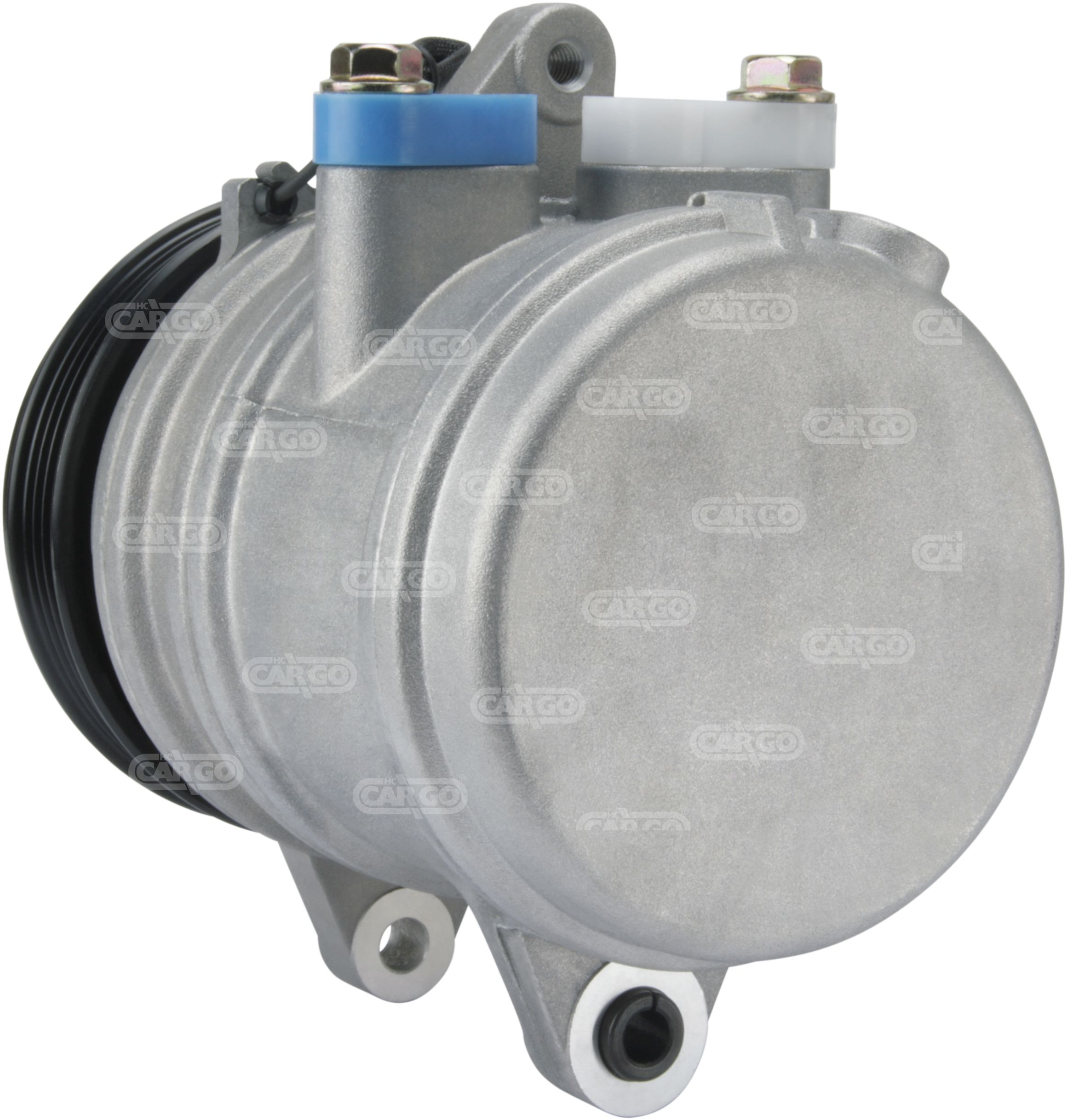

HC CARGO Aircon Compressor EasyFit 240875

Description

Voltage: 12
Mount. holes/front 2: 8.80
Dist. between holes 1: 145.00
Dist. between mount. bracket/hole: 83.00
Position: 2
Position 2: 58
Length mm: 167.00
Bracket thickness B3: 13.00
Inlet: 15.50
Outlet: 11.70
Pulley Dist. B1: 21.00
Pulley Dist. B2: 10.00
Pulley Grooves: 4
Pulley type: SP
Pulley OD mm: 107.00
Oil type: PAG 46
Oil capacity: 85 ml.
Refrigerant: R134a
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Chevrolet: 95213222, Daewoo: 717855, Daewoo: 96256053, Daewoo: 96528117, Daewoo: 96528118, General motor: 96565233

Replaces aftermarket reference(s):
Ava (Quality Cooling): DWAK079, Delphi: TSP0155855, Delphi: TSP0155856, Delphi: TSP0325242, Denso: DCP08003, Denso: DCP08010, Elstock: 51-0373, FrigAir: 92080005, Hella: 8FK351273-401, Nissens: 89275, NRF: 32143G, Teamec: 8600401, Teamec: 8600402, Waeco: 8880110506, Waeco: 8880110507
