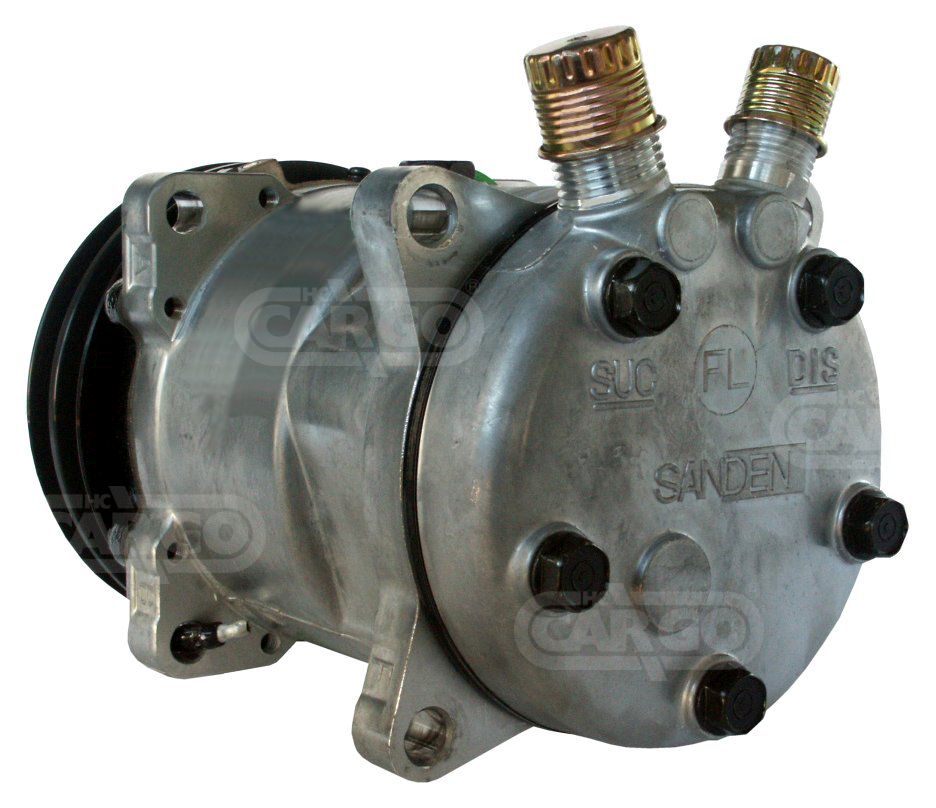

HC CARGO Aircon Compressor 240535

Description

Voltage: 24
Family type: SD5H14
Mount. holes/front 2: 10.00
Mount. holes/front: 10.00
Dist. between holes 1: 104.00
Dist. between holes 2: 104.00
Dist. between mount. bracket/hole: 83.30
Dist. between mount. bracket/hole 2: 83.30
Dist. between mount. bracket/hole 3: 104.00
Dist. between mount. bracket/hole 4: 104.00
Position: 55
Position 2: 5
Rear Cover Type: FL
Length mm: 217.00
Bracket thickness B3: 14.50
Inlet: 7/8-14UNF
Outlet: 3/4-16UNF
Pulley Dist. B1: 39.50
Pulley Dist. B2: 24.00
Pulley Grooves: 2
Pulley type: DP
Pulley OD mm: 132.00
Oil type: PAG 100
Oil capacity: 175 ml.
Refrigerant: R134a
O-ring: w/o
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Sanden: sd508-5472, Sanden: SD5H14-4506, Sanden: sd5h14-4507, Sanden: sd5h14-6627

Replaces aftermarket reference(s):
Ava (Quality Cooling): UVK035, Hella: 8FK351124-081, NRF: 32799G, Waeco: 8880100057
