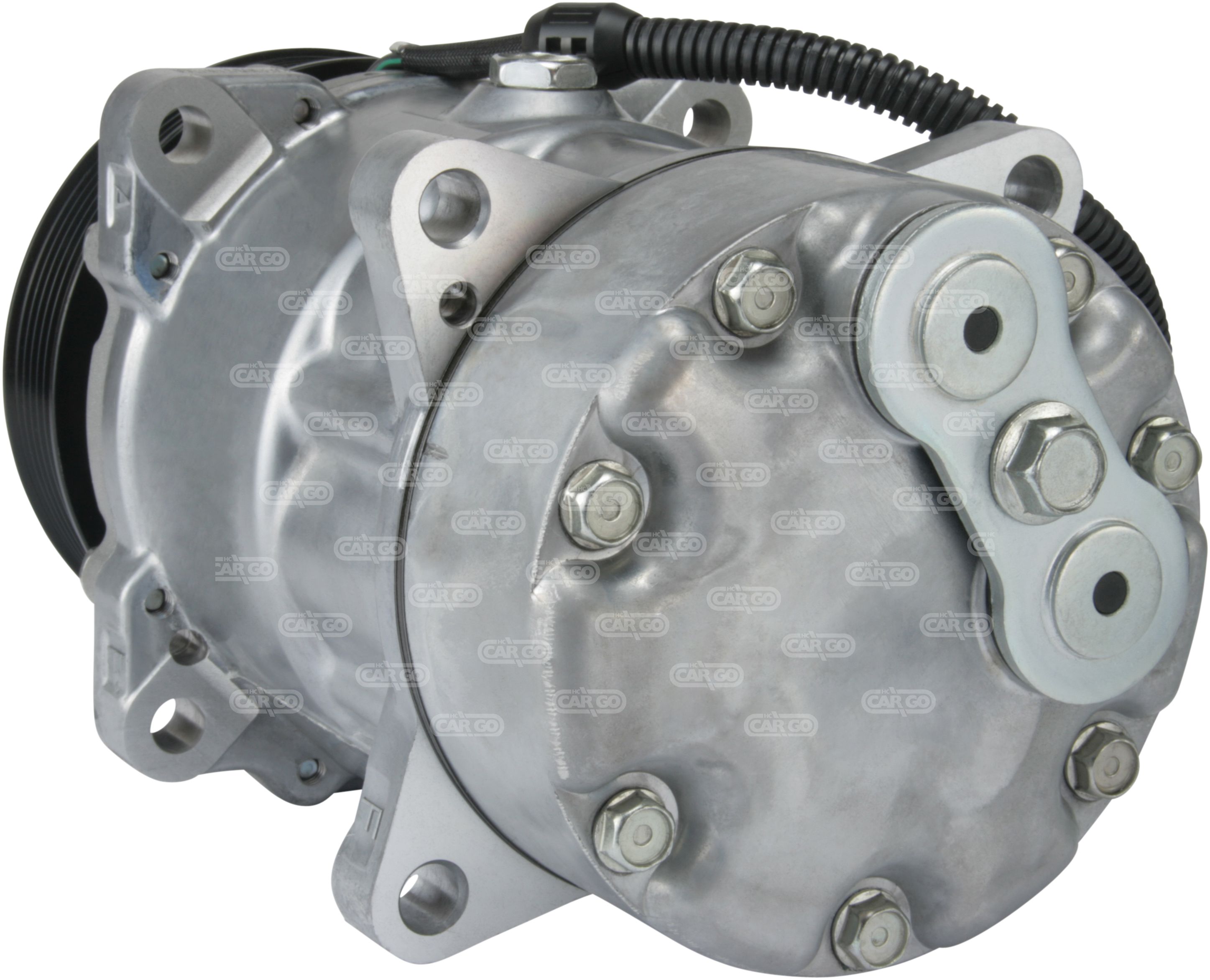

HC CARGO Aircon Compressor EasyFit 240012

Description

Voltage: 12
Family type: SD7V16
Mount. holes/front 2: 10.00
Mount. holes/front: 10.00
Dist. between holes 1: 104.00
Dist. between holes 2: 104.00
Dist. between mount. bracket/hole: 83.30
Dist. between mount. bracket/hole 2: 83.30
Position: 60
Position 2: 15
Rear Cover Type: VQ
Length mm: 228.00
Rotation: CW
Bracket thickness B3: 14.50
Inlet: 16.40
Outlet: 16.40
Pulley Dist. B1: 46.50
Pulley Dist. B2: 43.50
Pulley Grooves: 6
Pulley type: SP
Pulley OD mm: 119.00
Oil type: PAG 46
Oil capacity: 145 ml.
Refrigerant: R134a
O-ring: w/
Remarks: IMPORTANT! Oil Filling. 1. Drain the oil from the compressor and measure the amount of oil. 2. Fill with the additional oil quantity and oil type as required from the vehicle manufacturer. Please be careful not to combine the different kinds of oil types.

Replaces OEM reference(s):
Citroen, see Peugeot: 9636729480, Citroen, see Peugeot: 96404868480, Citroen, see Peugeot: 6453FE, Citroen, see Peugeot: 6453KV, Delphi: SD7V161155F, Fiat: 71789736, Fiat: 9613260680, Fiat: 9616821680, Fiat: 9640486480, Fiat: 9659231080, Peugeot: 9613260680, Peugeot: 9636729480, Peugeot: 9640486480, Peugeot: 9659231080, Peugeot: 6453EY, Peugeot: 6453FE, Peugeot: 6453GA, Peugeot: 6453L4, Peugeot: 6453L5, Peugeot: 6453TJ, Peugeot: 6453TK, Renault: 6360702060, Sanden: sd7v16-1106, Sanden: SD7V16-1106F, Sanden: SD7V16-1156, Sanden: sd7v16-1172, Sanden: sd7v16-1218, Sanden: sd7v16-1227, Sanden: SD7V16-1227F, Sanden: SD7V16-1227R, Sanden: SD7V16-QA1227

Replaces aftermarket reference(s):
Ava (Quality Cooling): CNAK161, Delphi: TSP0155031, Denso: DCP07011, Denso: DCP07055, Denso: DCP21006, Elstock: 51-0021, FrigAir: 92020049, Hella: 351127081, Hella: 8fk351127-081, Hella: 8FK351127091, Hella: 8FK351127581, Nissens: 89055, NRF: 32040, NRF: 32040G, Teamec: 8600031, Teamec: 8600046, Valeo: 669736, Valeo: 699019, Valeo: 699236, Valeo: 699243, Valeo: 699519, Valeo: 699736, Valeo: F699236A, Waeco: 8880100119
