PlusLine Condenser Ford 814294+

Description

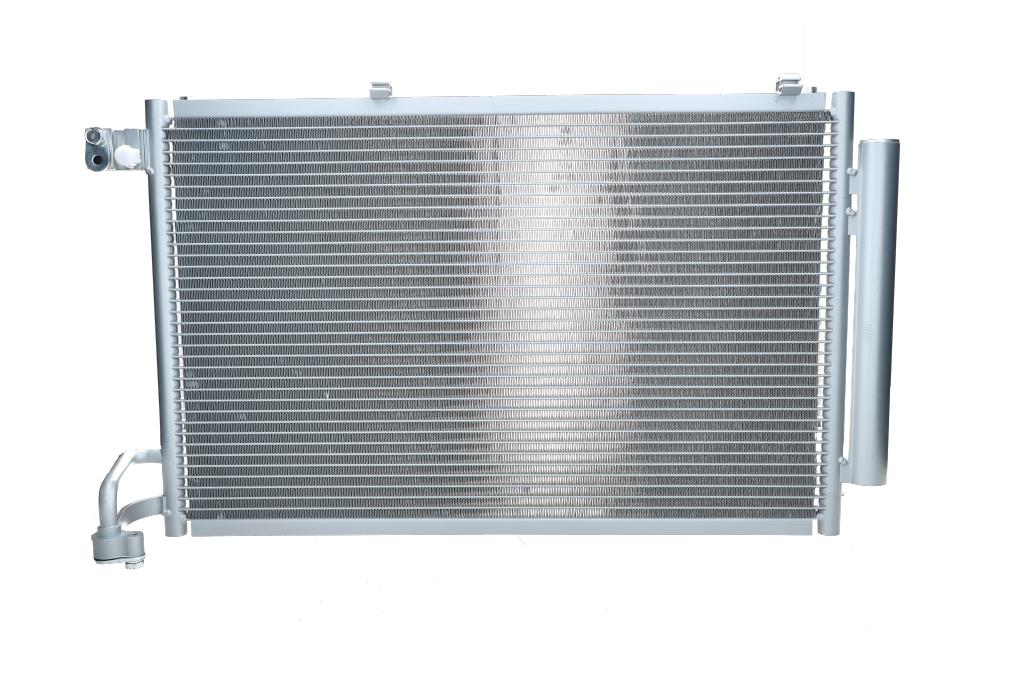

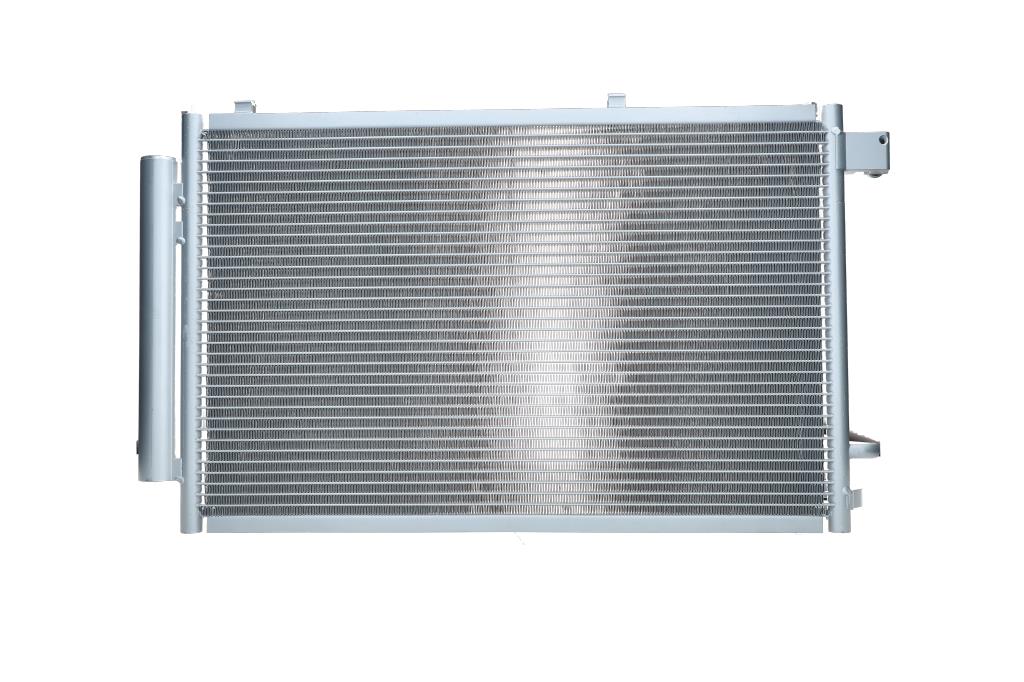

Aircon condenser – +Line Original 814294+ (PSH ref: 090.591.009.000)

Material: Aluminium
Core length (mm): 501.00000
Core width (mm): 385.00000
Core depth (mm): 12.00000

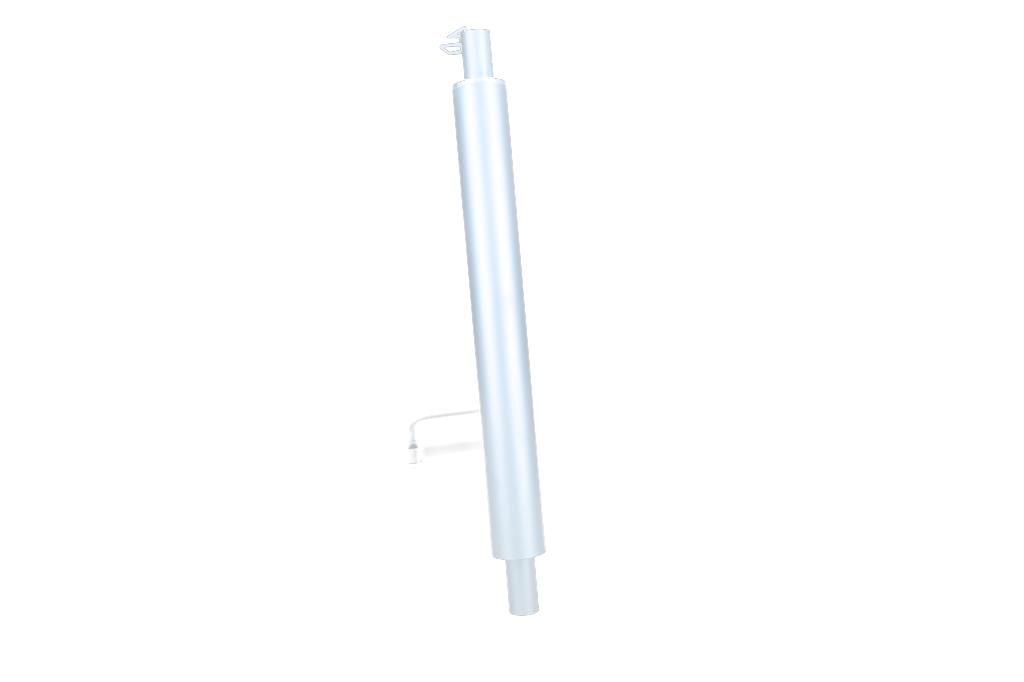

With dryer: Yes
Inlet diameter (mm): 14.10000
Outlet diameter (mm): 11.10000

Replaces OEM reference(s):
Ford: 1513108, Ford: 1521951, Ford: 1526277, Ford: 8V5119710BB, Ford: 8V5119710BC, Ford: 8V5119710BD

Replaces aftermarket reference(s):
Delphi: CF20146, Denso: DCN10041, Magneti Marelli: 350203720000, Magneti Marelli: BC720, Mahle: AC748000P, Mahle: AC748000S, Mahle: AC749000P, Valeo: 814294
