MAHLE PC Charge air cooler CI220000P

Description

Intercooler, charger

MAHLE PREMIUM LINE comprises around 4,700 products produced by MAHLE, AKG, HANON, and other OE manufacturers. PREMIUM LINE products in OE quality are particularly durable and
deliver peak performance even under extreme conditions, making them the ideal solution for customers who expect the best.

Cooling fins material: Aluminium

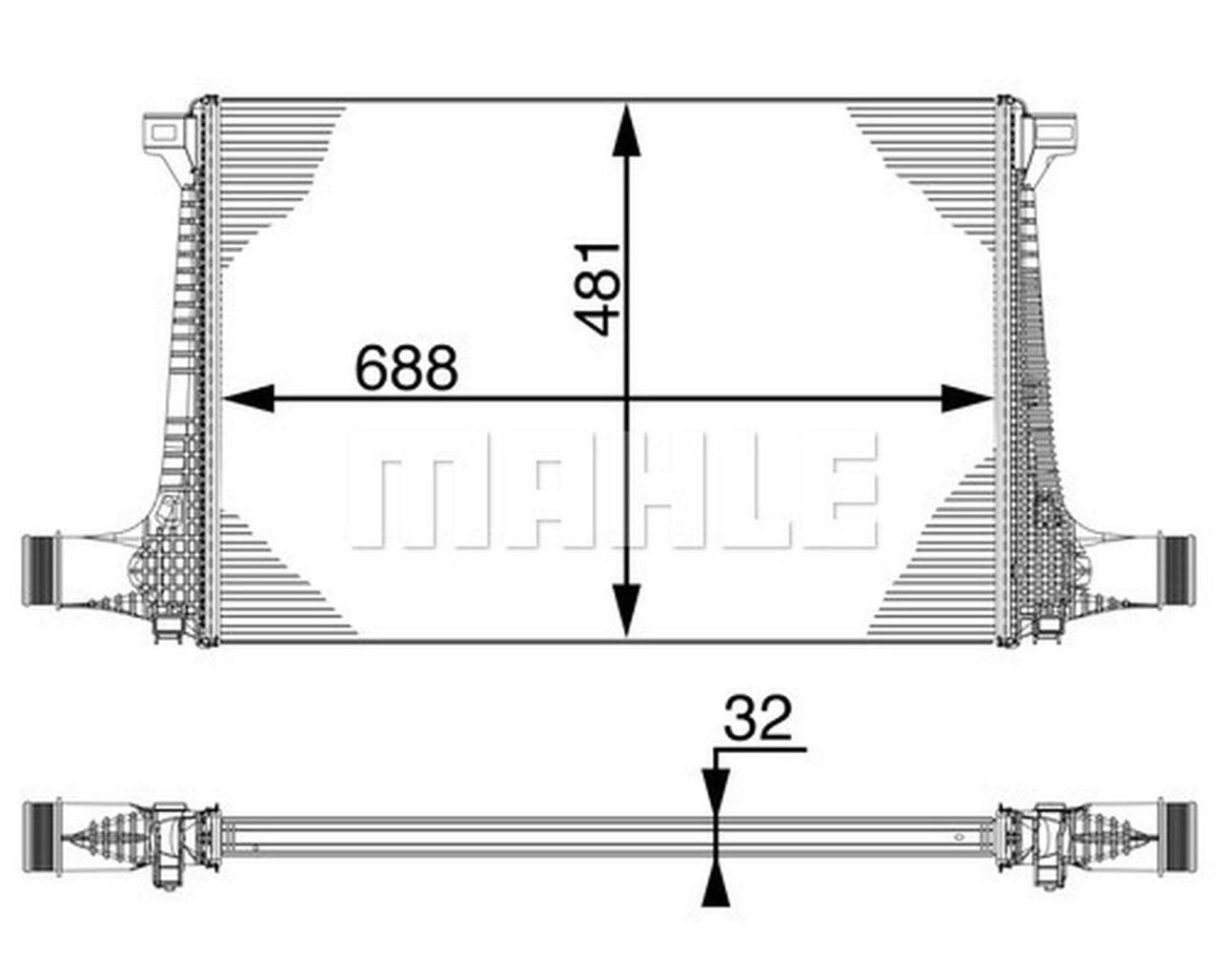

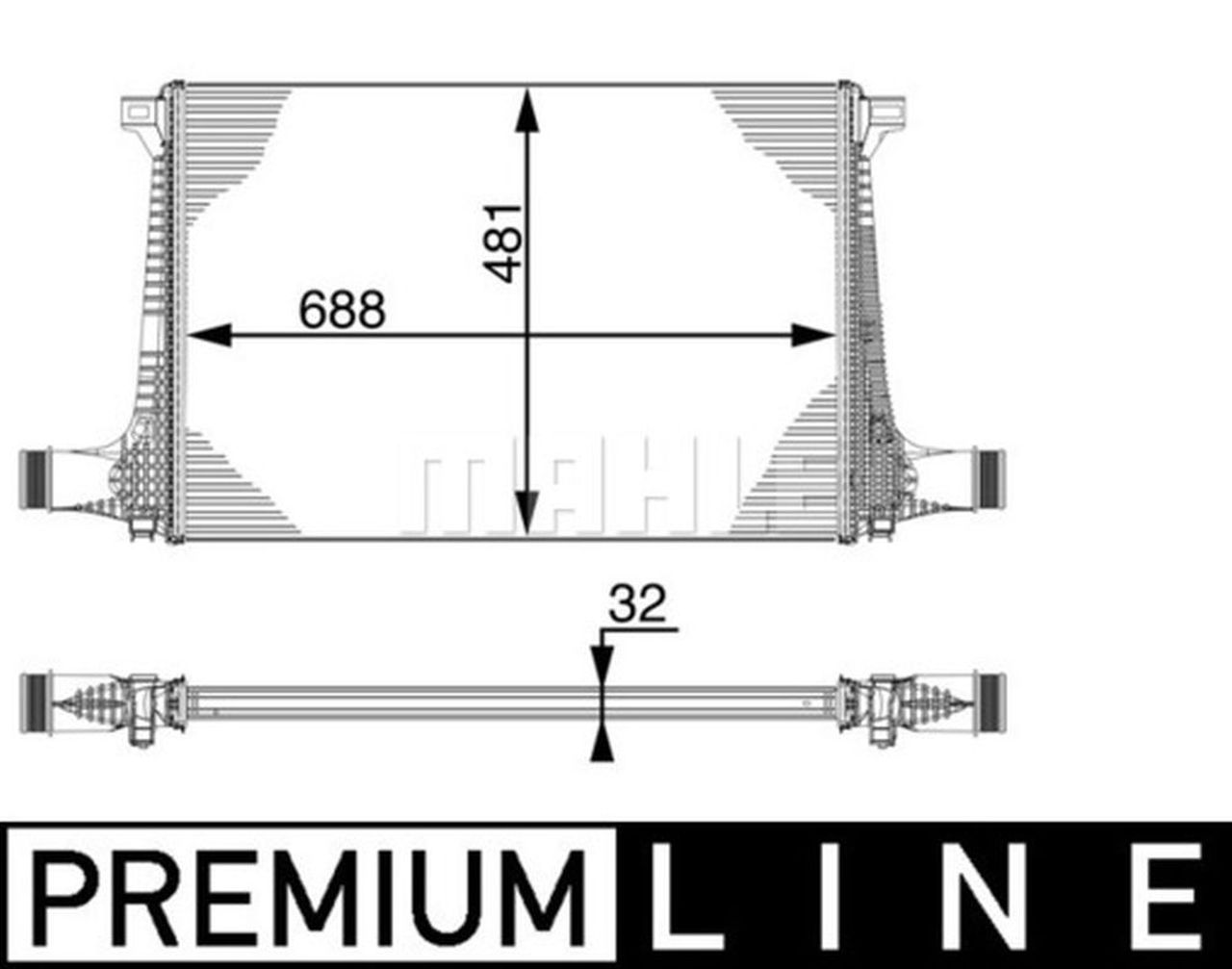

Core Depth [mm]: 32
Core Length [mm]: 688
Core Width [mm]: 481
Inlet Ø [mm]: 60
Manufacturer: MAHLE
Outlet Ø [mm]: 60
Radiator type: Brazed cooling fins
Water tank material (radiator): Plastic

Replaces OEM reference(s):
AUDI: 4M0145805C | AUDI: 4M0145805D | AUDI: 4M0145805E | AUDI: 4M0145805G | AUDI: 4M0145805Q | CUPRA: 4M0145805C | CUPRA: 4M0145805D | CUPRA: 4M0145805E | CUPRA: 4M0145805G | VW: 4M0145805C | VW: 4M0145805D | VW: 4M0145805E | VW: 4M0145805G | VW: 4M0145805Q

Replaces aftermarket reference(s):
AHE: 702092 | AKS DASIS: 047054N | MAHLE: CI220000P | NISSENS: 961470 | NRF: 309121 | TD_OE_PC: INT01558 | TD_OE_PC: INT01749 | TD_OE_PC: INT01969 | TD_OE_PC: INTC00602 | VAN WEZEL: 03014706
