MAHLE Aircon Evaporator AE240000S

Description

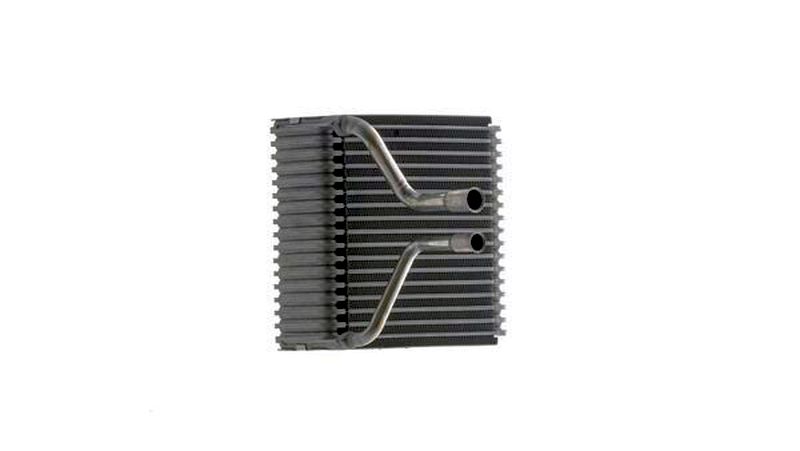

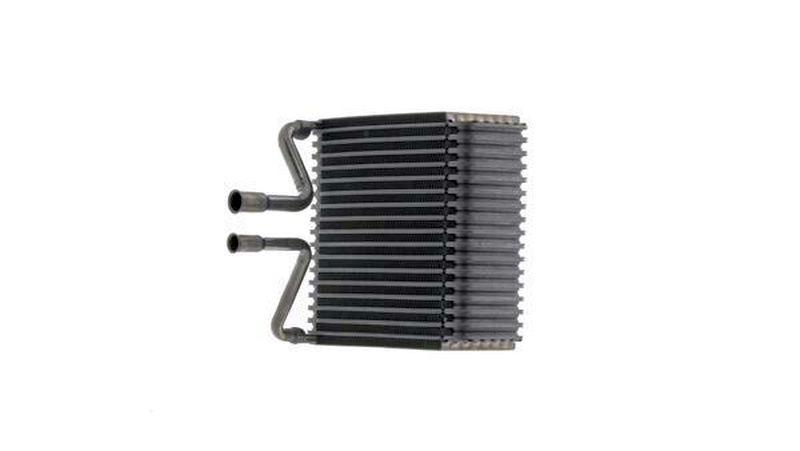

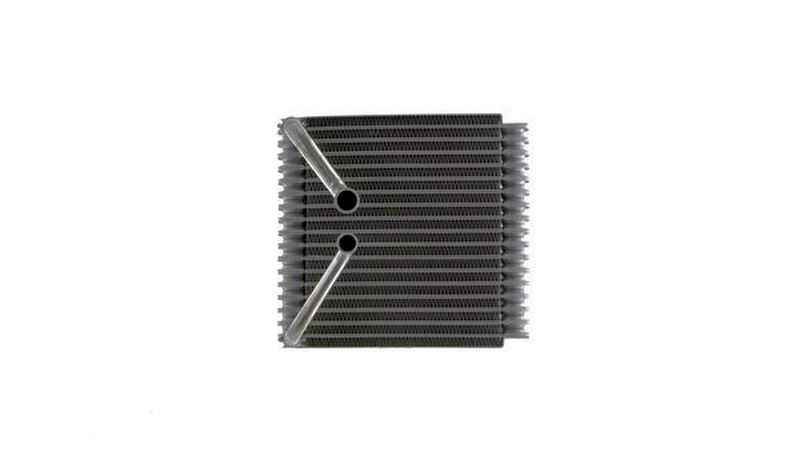

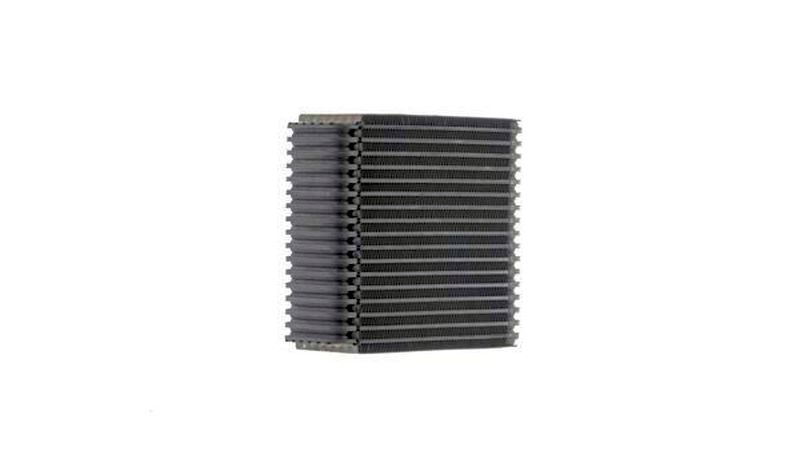

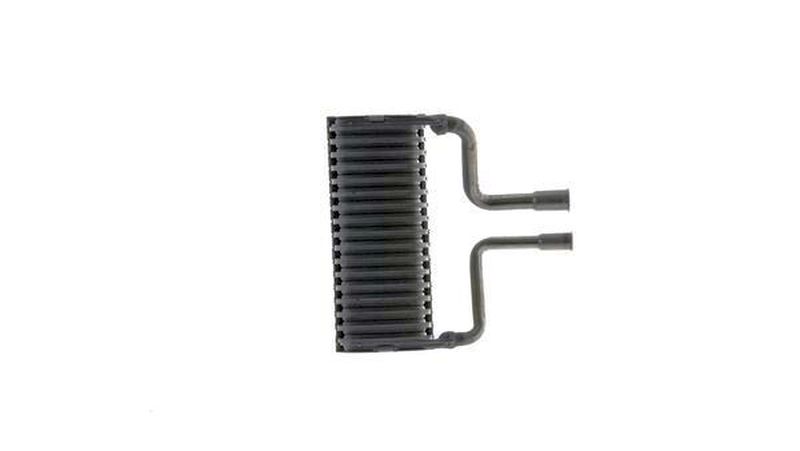

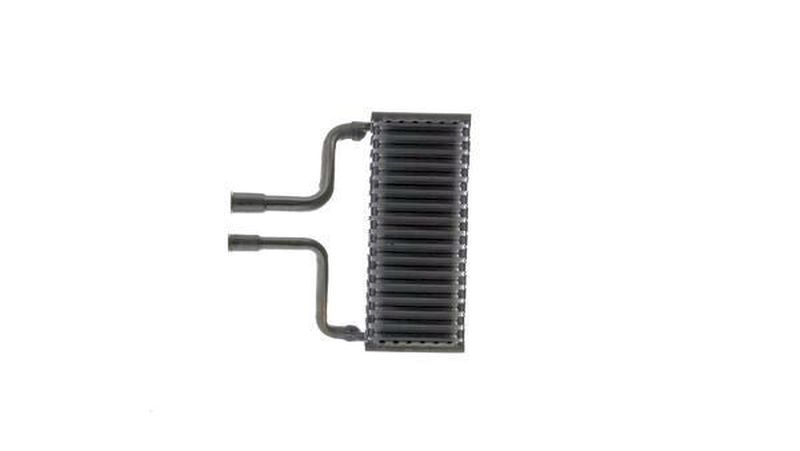

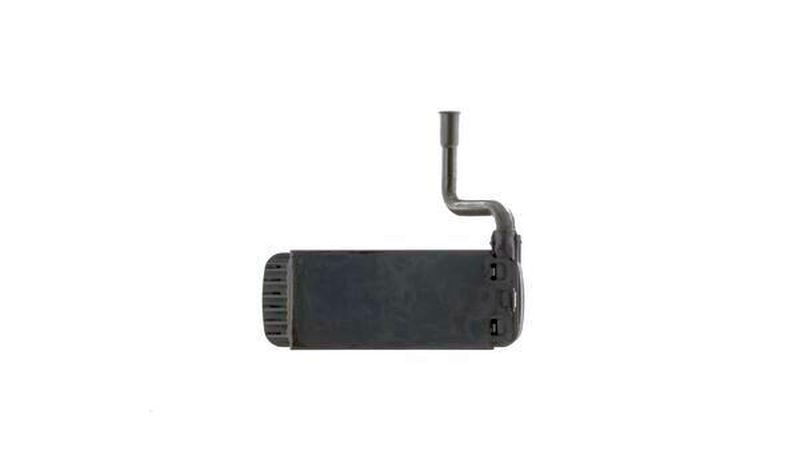

Evaporator for air conditioner

The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself.

• additional information: Without gasket / seal
• Cooling fins material: Aluminum
• Core Depth [mm]: 90
• Core Length [mm]: 218
• Core Width [mm]: 235
• Driver Position: not relevant
• further details: without expansion valve
• Inlet Ø [mm]: 14,3
• Outlet Ø [mm]: 17,45
• Radiator type: Parallel cooling pipes
• Refrigerant: R 134a

Replaces OEM reference(s):
FORD: 1102929, FORD: 1128223, FORD: 1135813, FORD: 1220512, FORD: 1220513, FORD: 6798779, FORD: 6818133, FORD: 7236223, FORD: 157H19850AA, FORD: 1S7H19850AA, FORD: 1S7H19850BA, FORD: 1S7H19850CA, FORD: 93BW19850AC, FORD: 93BW19850AD, FORD: 93BW19860AC, FORD: F5RZ19860A, FORD: XS7H19850AA, FORD: YS7H19850AA

Replaces aftermarket reference(s):
NISSENS: 92015, NRF: 36043
