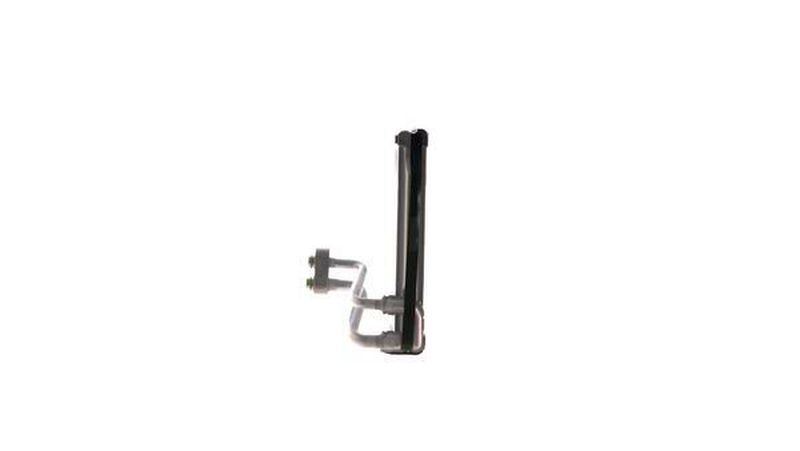

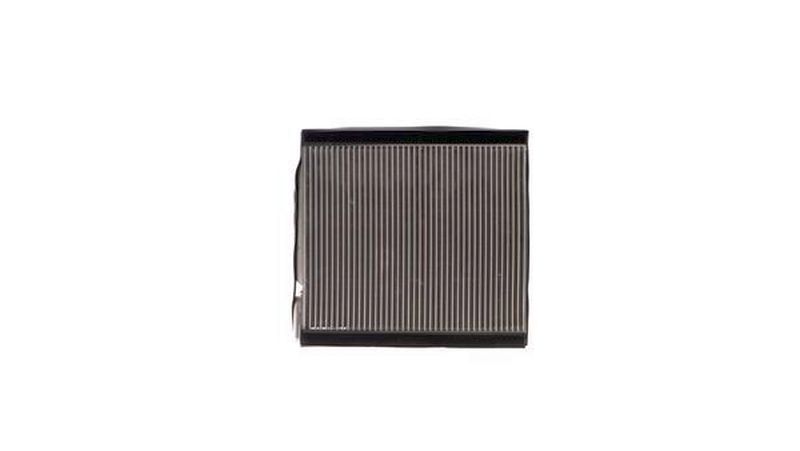

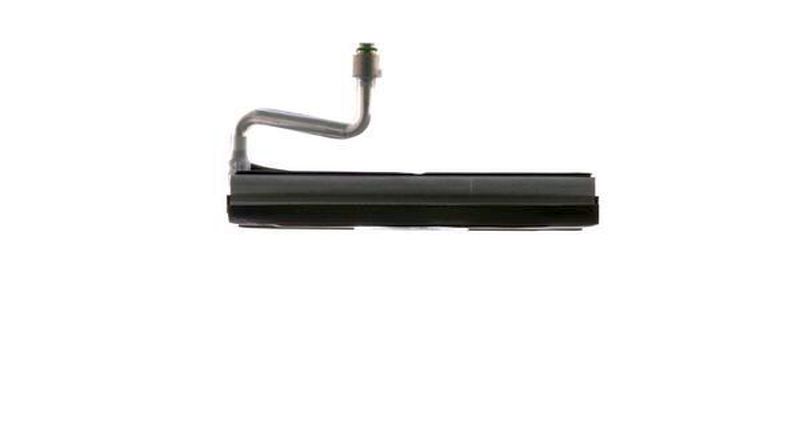

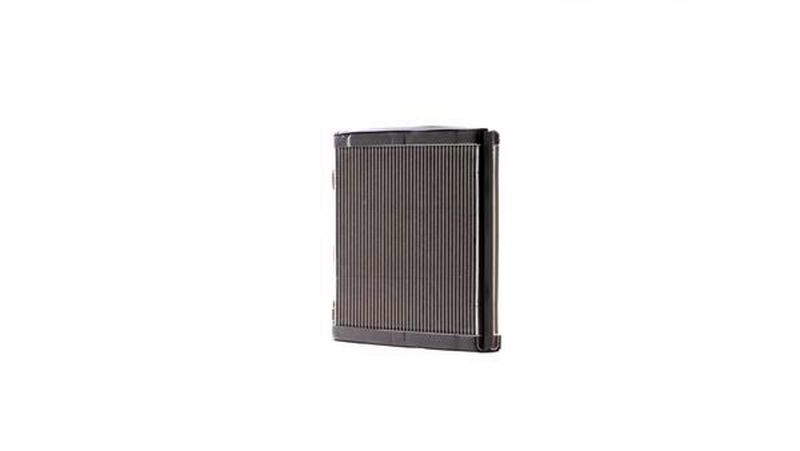

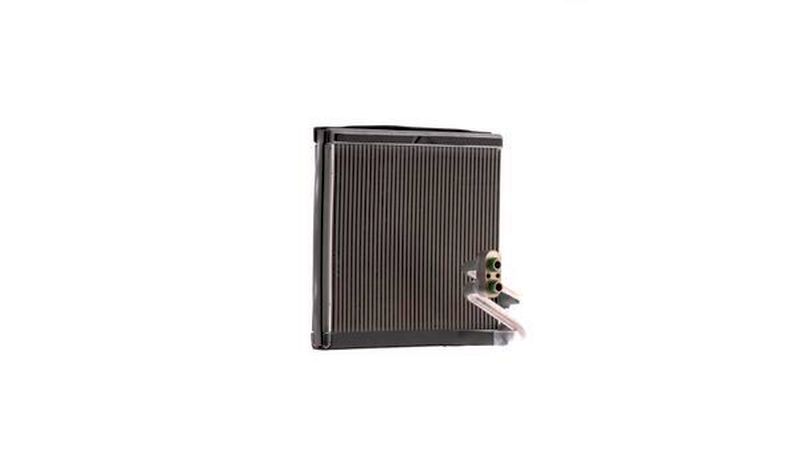

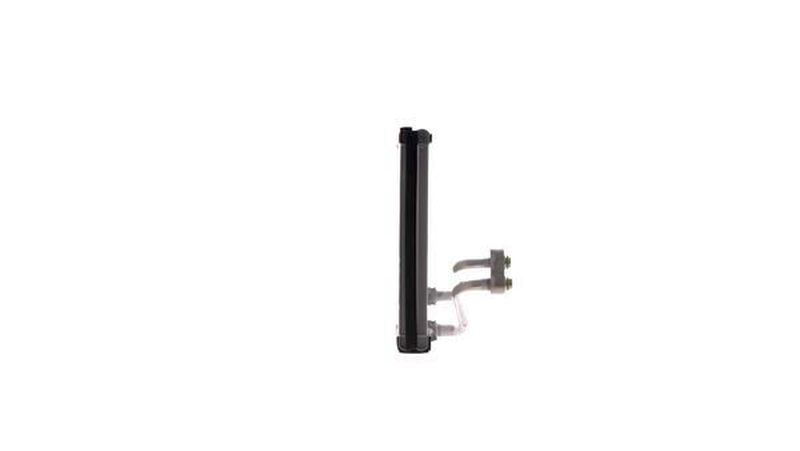

MAHLE Aircon Evaporator AE234000S

Description

Evaporator for air conditioner

The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself.

• additional information: Without gasket / seal
• Cooling fins material: Aluminum
• Core Depth [mm]: 36
• Core Length [mm]: 275
• Core Width [mm]: 227
• Driver Position: For left-hand drive vehicles
• further details: without expansion valve
• Inlet Ø [mm]: 14,4
• Outlet Ø [mm]: 14,4
• Radiator type: Parallel cooling pipes

Replaces OEM reference(s):
HYUNDAI/KIA: 97139A5000

Replaces aftermarket reference(s):
NRF: 36180
