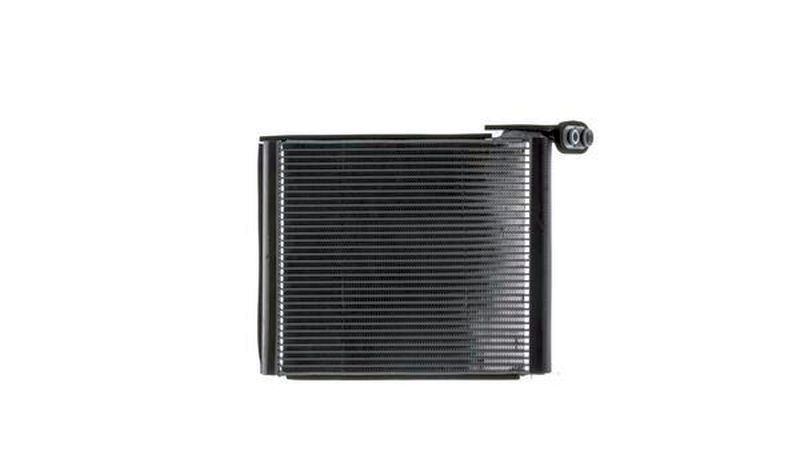

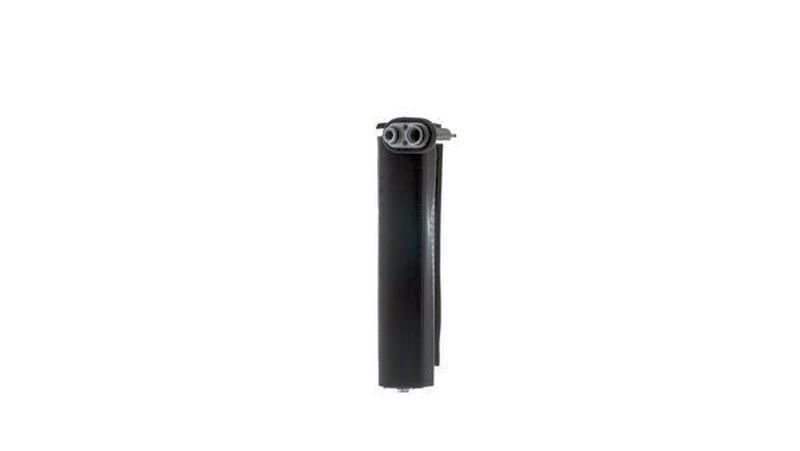

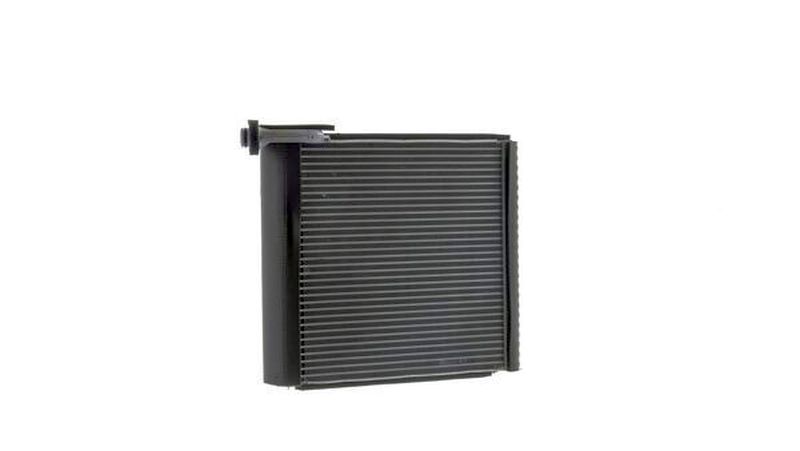

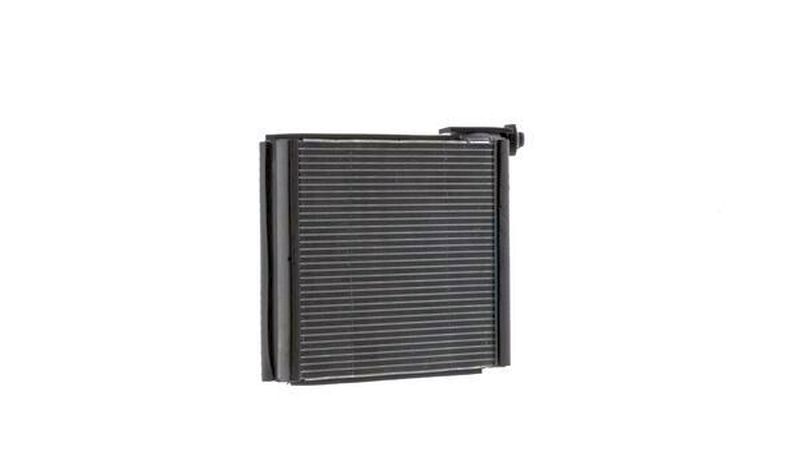

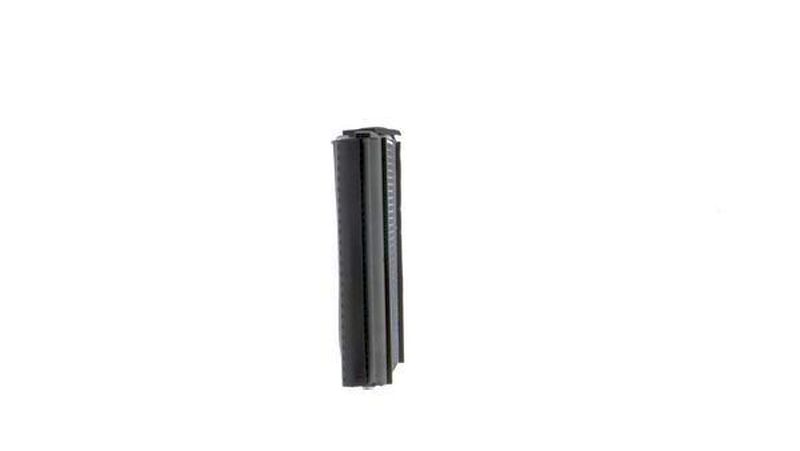

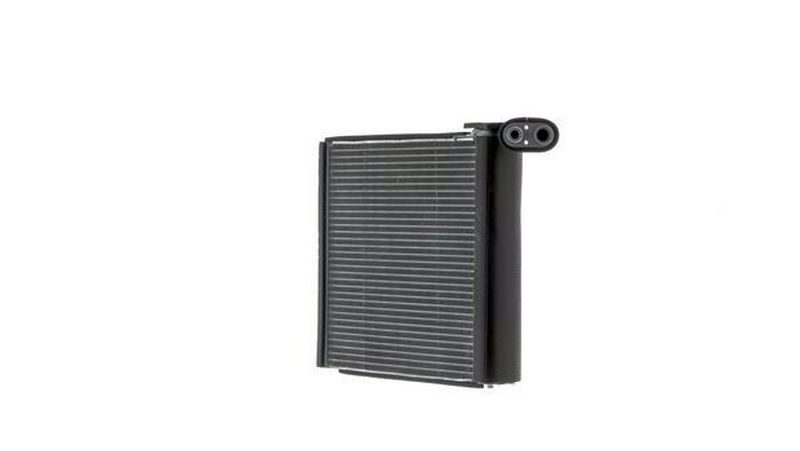

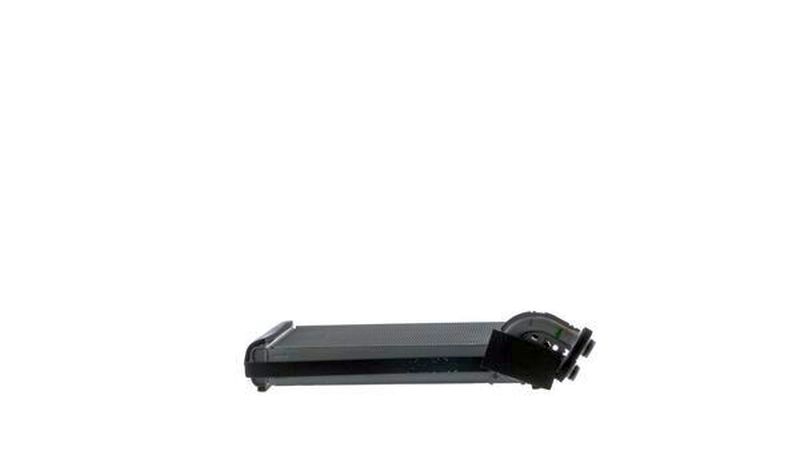

MAHLE Aircon Evaporator AE230000S

Description

Evaporator for air conditioner

The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself.

• additional information: Without gasket / seal
• Cooling fins material: Aluminum

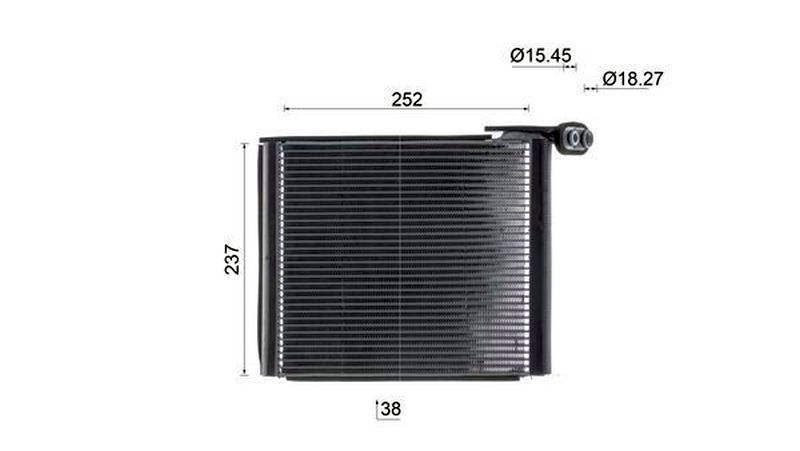

• Core Depth [mm]: 38
• Core Length [mm]: 252
• Core Width [mm]: 237
• Driver Position: For left-hand drive vehicles
• further details: without expansion valve
• Inlet Ø [mm]: 15,47
• Outlet Ø [mm]: 18,27
• Radiator type: Parallel cooling pipes

Replaces OEM reference(s):
TOYOTA: 8850126210, TOYOTA: 8850126211, TOYOTA: 8850172011, TOYOTA: 8850172020

Replaces aftermarket reference(s):
NISSENS: 92338, NRF: 36171
