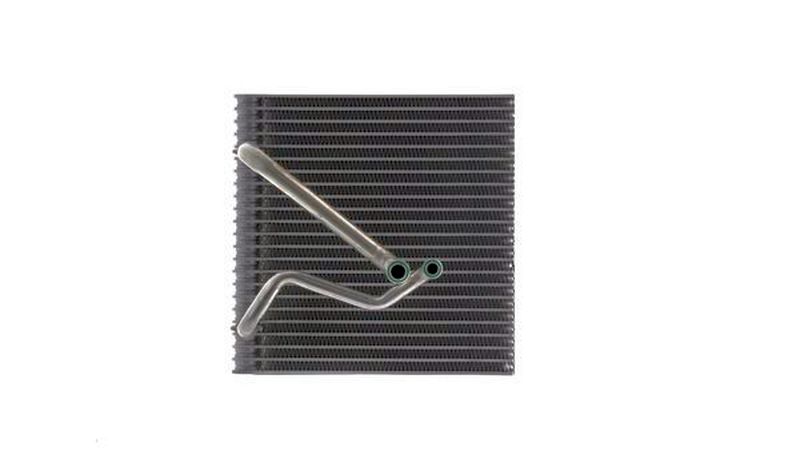

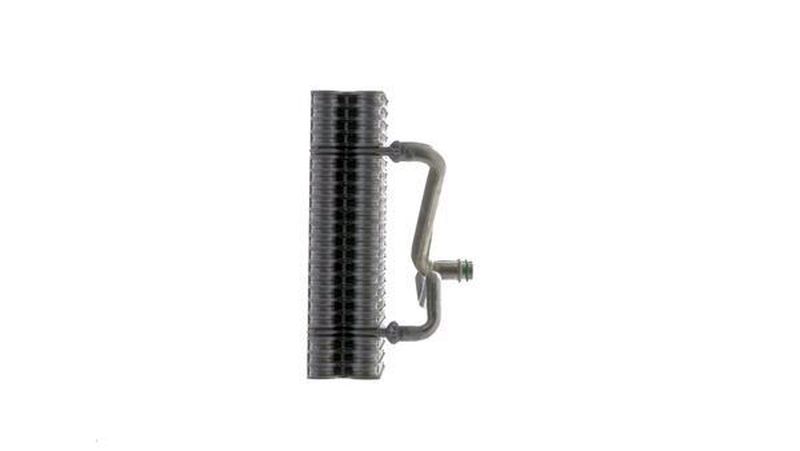

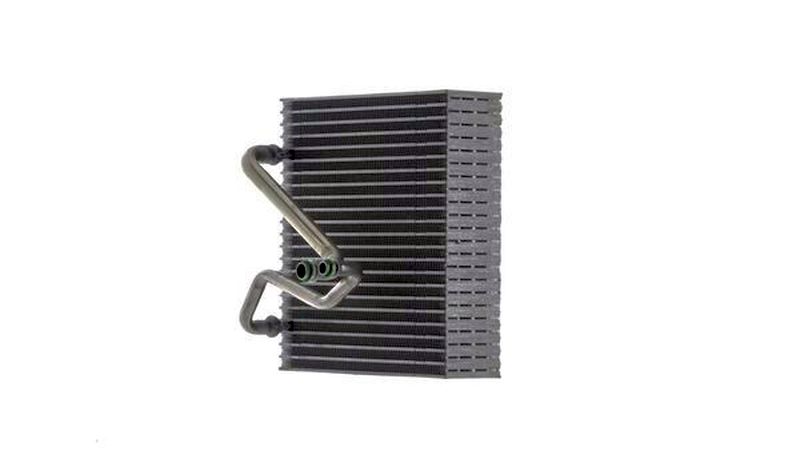

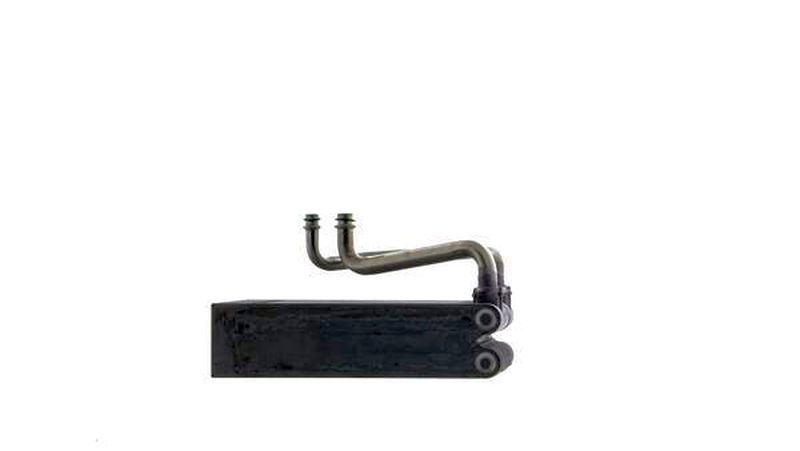

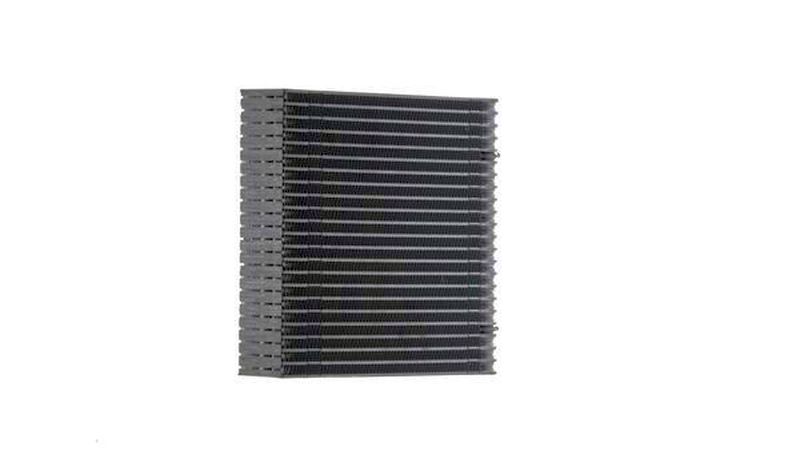

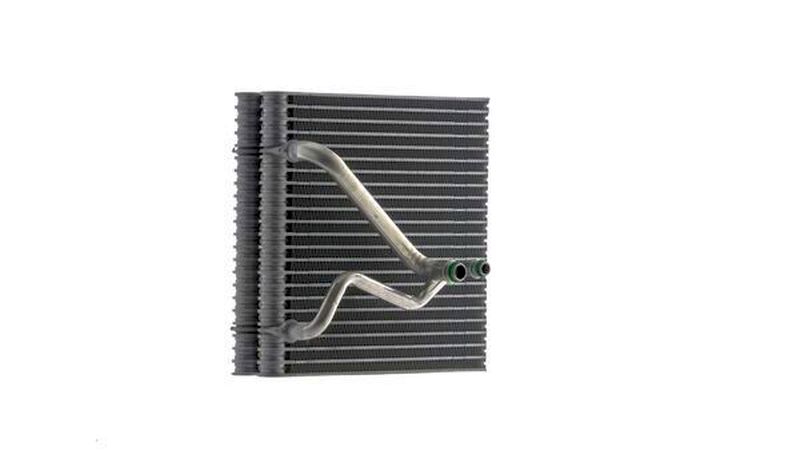

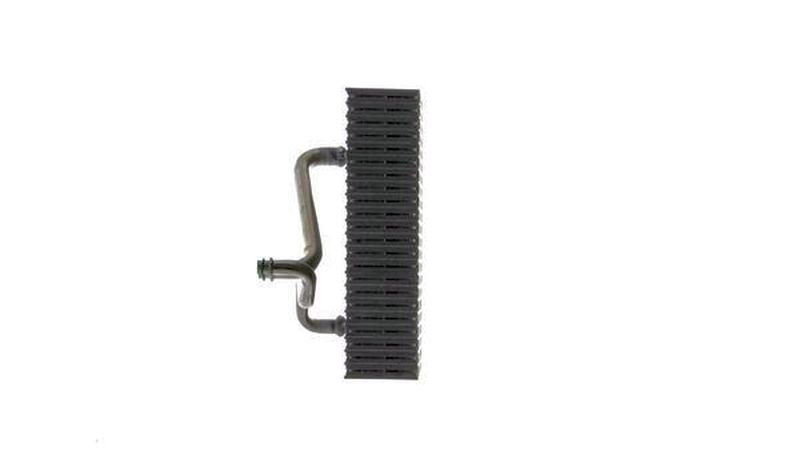

MAHLE Aircon Evaporator AE223000S

Description

Evaporator for air conditioner

The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself.

• additional information: With gaskets/seals

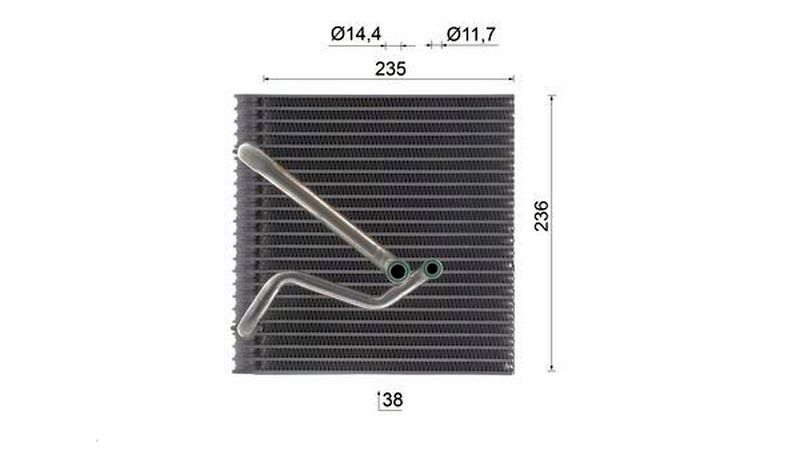

• Core Depth [mm]: 60
• Core Length [mm]: 236
• Core Width [mm]: 235
• Driver Position: For left-hand drive vehicles
• further details: without expansion valve
• Inlet Ø [mm]: 14,4
• Manufacturer Restriction: VALEO
• Outlet Ø [mm]: 11,7
• Radiator type: Parallel cooling pipes

Replaces OEM reference(s):
AUDI/SEAT/SKODA/VW: 1K1820103, AUDI/SEAT/SKODA/VW: 1K1820103A, AUDI/SEAT/SKODA/VW: 1K1820103B, AUDI/SEAT/SKODA/VW: 1K1820103E, VW: 1K1820103H

Replaces aftermarket reference(s):
NISSENS: 92163, NRF: 36109, VALEO: 817719
