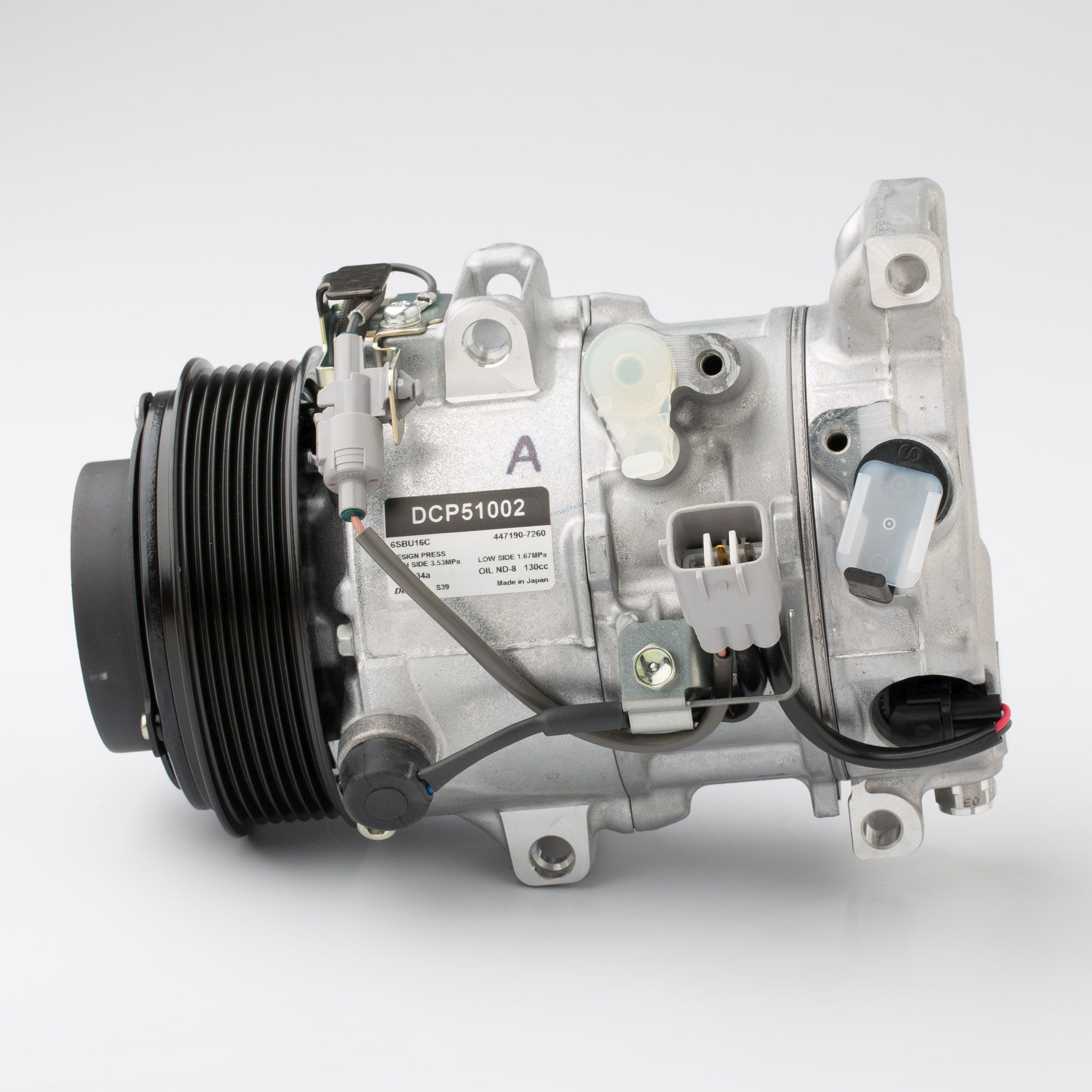

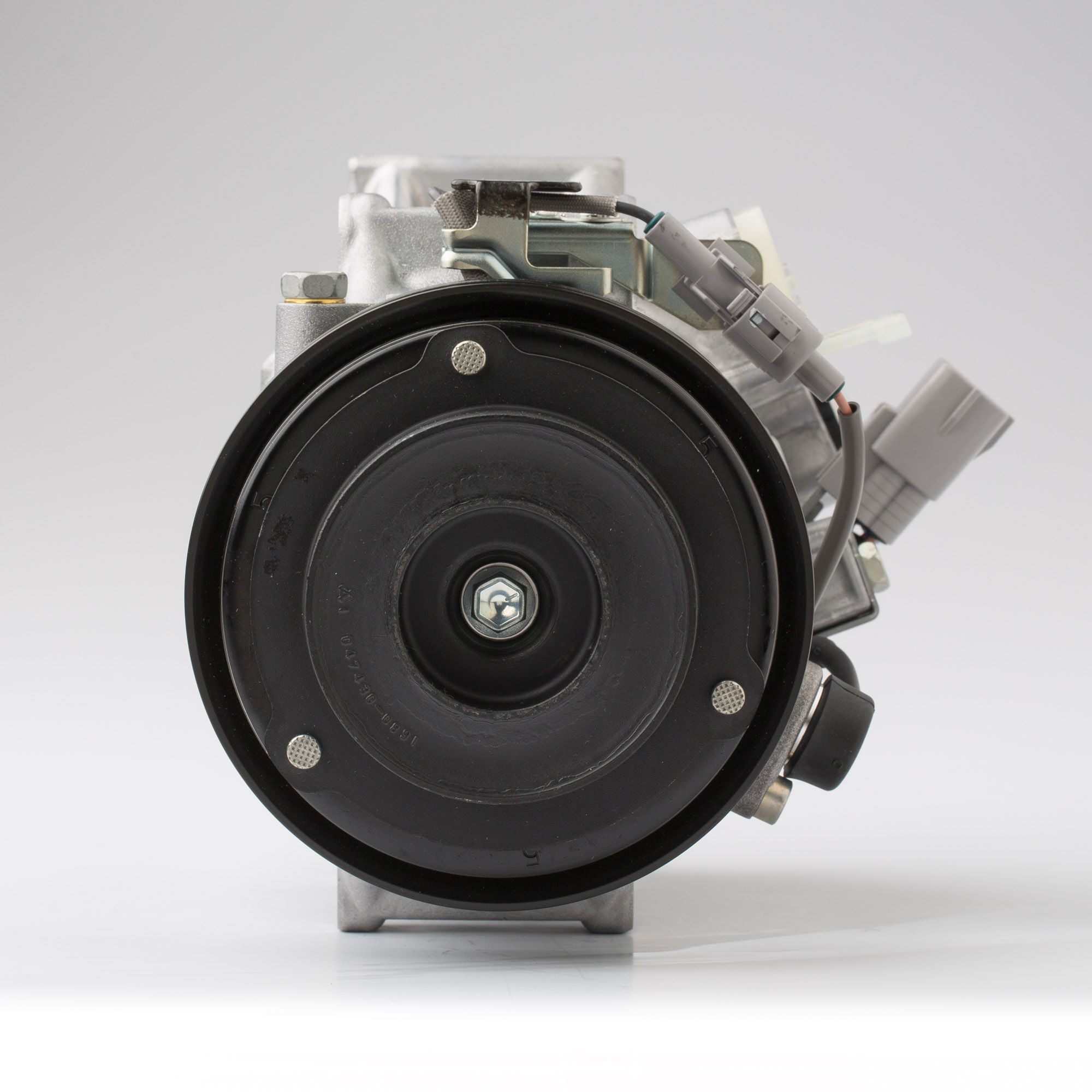

Denso Aircon Compressor DCP51002

Description

Compressor, Air Conditioner

• Clutch Type: L50S
• Compressor Type: 6SBU16C
• DNTS short code: 447190-7260
• Filled: Filled
• Gross Weight (g): 7760
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 6950
• Number of grooves: 7
• Number of ribs: 7
• OE Manufacturer: TOYOTA
• OE Number: 88310-3A430; 88310-3A431; 88310-0N010
• Oil Quantity: 130
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Pulley Diameter(mm): 115
• Quality: DENSO
• Refrigerant Type: R134a
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 12
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44719072603D, TOYOTA: 883100N010, TOYOTA: 88310-0N010, TOYOTA: 883103A430, TOYOTA: 88310-3A430, TOYOTA: 883103A431, TOYOTA: 88310-3A431, TOYOTA: 883203A250, TOYOTA: 88320-3A250, TOYOTA: 883203A300, TOYOTA: 88320-3A300, TOYOTA: 884103A280, TOYOTA: 88410-3A280, TOYOTA: 884103A290, TOYOTA: 88410-3A290

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK639, BEHR HELLA SERVICE: 8FK 351 176-701, BEHR HELLA SERVICE: 8FK351176701, DENSO: 2473002890, DENSO: 2473002891, DENSO: 2473005100, DENSO: 4471808530, DENSO: 4471907260, DENSO: 4472600090, DENSO: 4472600091, DENSO: 4472601460, DENSO: 4472601461, DENSO: 4472601462, DENSO: 4472808360, DENSO: 247300-2890, DENSO: 247300-2891, DENSO: 247300-5100, DENSO: 447180-8530, DENSO: 447190-7260, DENSO: 447260-0090, DENSO: 447260-0091, DENSO: 447260-1460, DENSO: 447260-1461, DENSO: 447260-1462, DENSO: 447280-8360, ELSTOCK: 510859, ELSTOCK: 51-0859, MAHLE: ACP 264, MAHLE: ACP 264 000S, MAHLE: ACP264, MAHLE: ACP264000S, NISSENS: 890141
