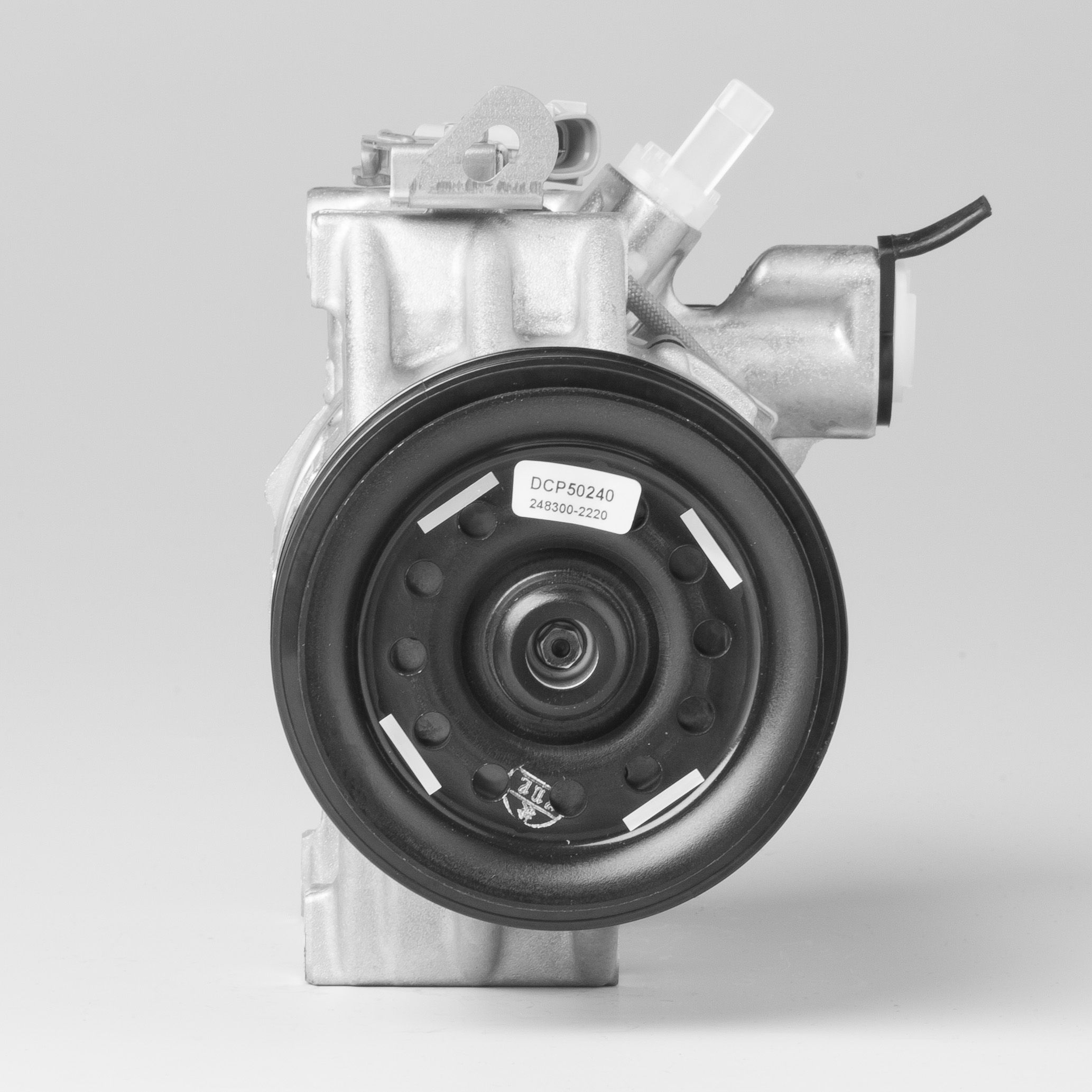

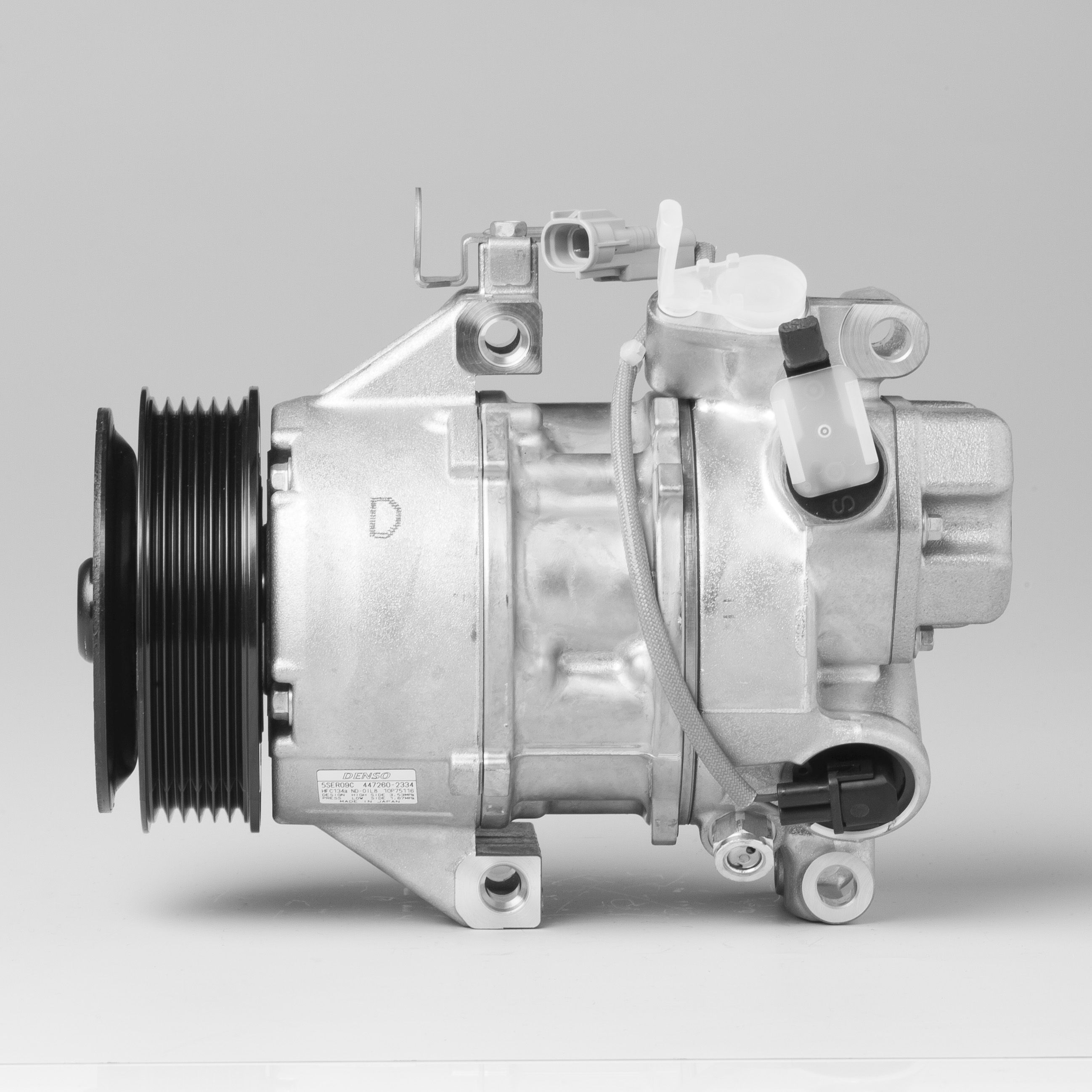

Denso Aircon Compressor DCP50240

Description

Compressor, Air Conditioner

• Clutch Type: B-PCW
• Compressor Type: 5SER09C
• DNTS short code: 447190-5220
• Filled: Filled
• Gross Weight (g): 4380
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Inlet ?: 18.3
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• Net Weight (g): 3570
• Number of grooves: 6
• Number of ribs: 6
• OE Manufacturer: TOYOTA
• OE Number: 88310-0D230 ; 88310-52590
• Oil Quantity: 60
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Outlet ?: 15.5
• Pulley Diameter(mm): 100
• Pulley type: DL-Pulley
• Quality: DENSO
• Refrigerant Type: R134a
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44715003503D, TOYOTA: 8831052590, TOYOTA: 8831052591, TOYOTA: 8831052592, TOYOTA: 883100D230, TOYOTA: 88310-0D230, TOYOTA: 883100D231, TOYOTA: 88310-0D231, TOYOTA: 883100D232, TOYOTA: 88310-0D232, TOYOTA: 88310-52590, TOYOTA: 88310-52591, TOYOTA: 88310-52592

Replaces aftermarket reference(s):
AVA COOLING SYSTEMS: TOK618, BEHR HELLA SERVICE: 8FK 351 125-201, BEHR HELLA SERVICE: 8FK 351 125-701, BEHR HELLA SERVICE: 8FK351125201, BEHR HELLA SERVICE: 8FK351125701, DENSO: 2483001310, DENSO: 2483002220, DENSO: 4471500330, DENSO: 4471500350, DENSO: 4471501640, DENSO: 4471905220, DENSO: 4471909180, DENSO: 4472600950, DENSO: 4472601500, DENSO: 4472601780, DENSO: 4472602330, DENSO: 248300-1310, DENSO: 248300-2220, DENSO: 447150-0330, DENSO: 447150-0350, DENSO: 447150-1640, DENSO: 447190-5220, DENSO: 447190-9180, DENSO: 447260-0950, DENSO: 447260-1500, DENSO: 447260-1780, DENSO: 447260-2330, ELSTOCK: 510707, ELSTOCK: 51-0707, FRIGAIR: 92030247, MAHLE: 72440482, MAHLE: ACP 43, MAHLE: ACP 43 000P, MAHLE: ACP 43 000S, MAHLE: ACP43, MAHLE: ACP43000P, MAHLE: ACP43000S, NISSENS: 89443, NRF: 32736G, WAECO: 8880120465
