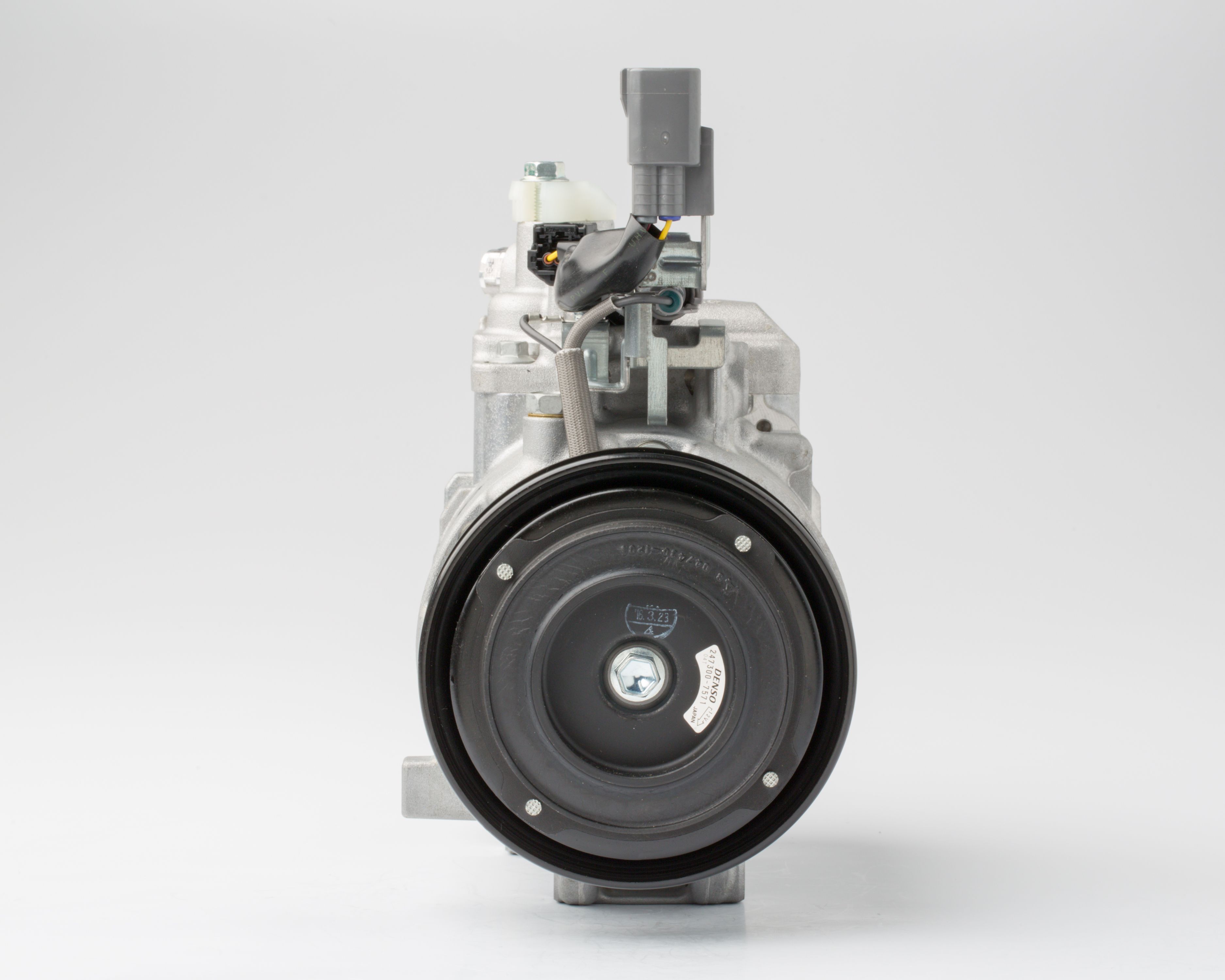

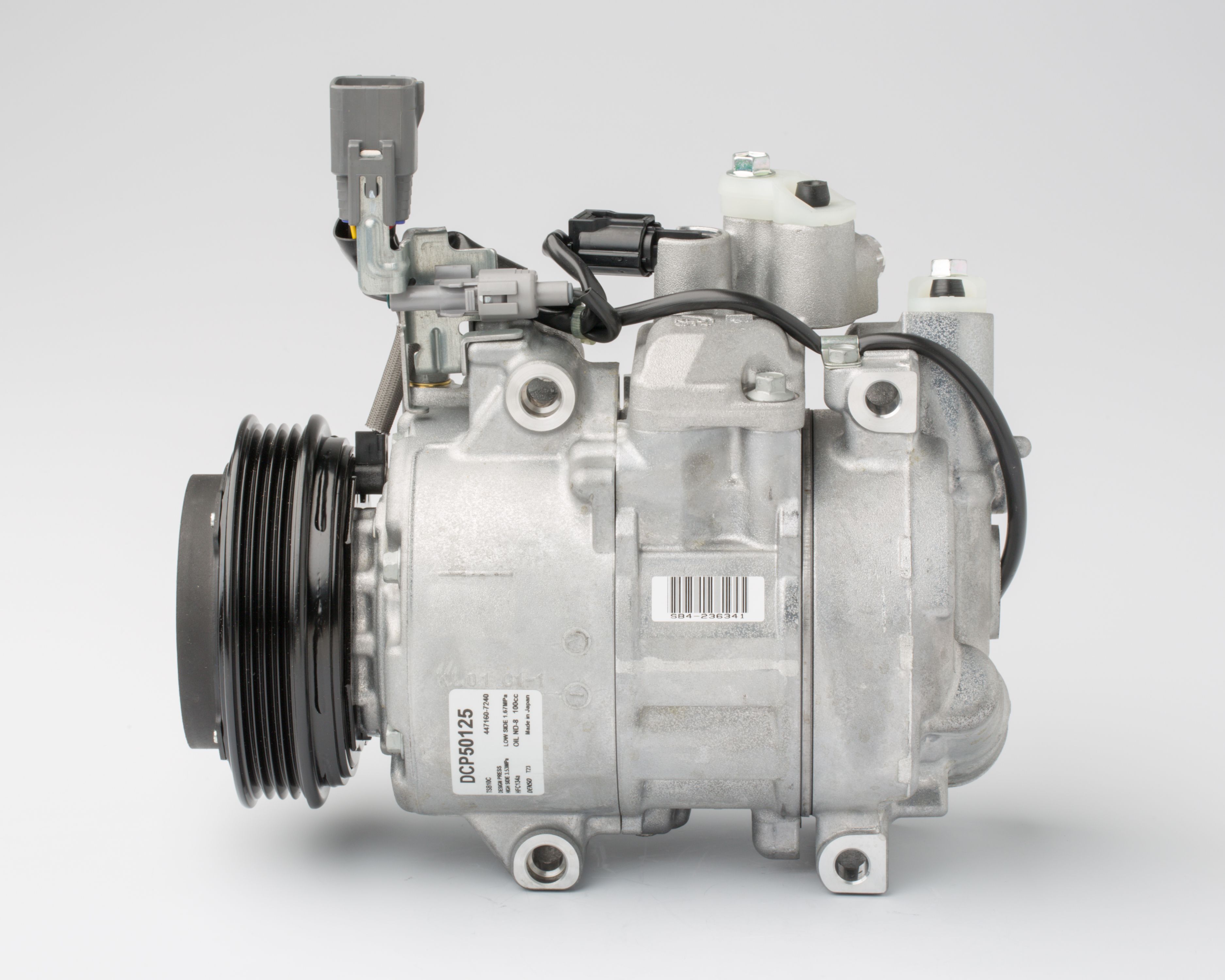

Denso Aircon Compressor DCP50125

Description

Compressor, Air Conditioner

• Compressor Type: TSB10C
• DNTS short code: 447160-1870
• Filled: Filled
• Gross Weight (g): 6055
• Height Incl Packaging (mm): 290
• Indication Reman Part: New
• Length Incl Packaging (mm): 320
• Mounting Type: Bolted
• NDE p/n_NTR: 447160-7240
• Net Weight (g): 5245
• Number of grooves: 4
• Number of ribs: 4
• OE Manufacturer: TOYOTA
• OE Number: 88310-74010
• Oil Quantity: 100
• Oil Type: ND-Oil 8
• Oil Type 2: ND-8
• Pulley Diameter(mm): 105
• Quality: DENSO
• Refrigerant Type: R134a
• Supplementary Article Info 2: with magnetic clutch
• Voltage (V): 12
• Width Incl Packaging (mm): 220

Replaces OEM reference(s):
Denso: 44716072403D, TOYOTA: 8831074010, TOYOTA: 8831074012, TOYOTA: 8831074021, TOYOTA: 8831074022, TOYOTA: 8832074010, TOYOTA: 8832074050, TOYOTA: 8841074010, TOYOTA: 8841074040, TOYOTA: 88310-74010, TOYOTA: 88310-74012, TOYOTA: 88310-74021, TOYOTA: 88310-74022, TOYOTA: 88320-74010, TOYOTA: 88320-74050, TOYOTA: 88410-74010, TOYOTA: 88410-74040

Replaces aftermarket reference(s):
DENSO: 2473006870, DENSO: 2473006871, DENSO: 2473007570, DENSO: 4471601870, DENSO: 4471601872, DENSO: 4471601880, DENSO: 4471603240, DENSO: 4471603250, DENSO: 4471607240, DENSO: 4471607250, DENSO: 4472603350, DENSO: 4472603351, DENSO: 4472603950, DENSO: 4472809120, DENSO: 247300-6870, DENSO: 247300-6871, DENSO: 247300-7570, DENSO: 447160-1870, DENSO: 447160-1872, DENSO: 447160-1880, DENSO: 447160-3240, DENSO: 447160-3250, DENSO: 447160-7240, DENSO: 447160-7250, DENSO: 447260-3350, DENSO: 447260-3351, DENSO: 447260-3950, DENSO: 447280-9120, ELSTOCK: 511038, ELSTOCK: 51-1038, FRIGAIR: 92030272
