A4C Aircon Condenser CON9007

Description

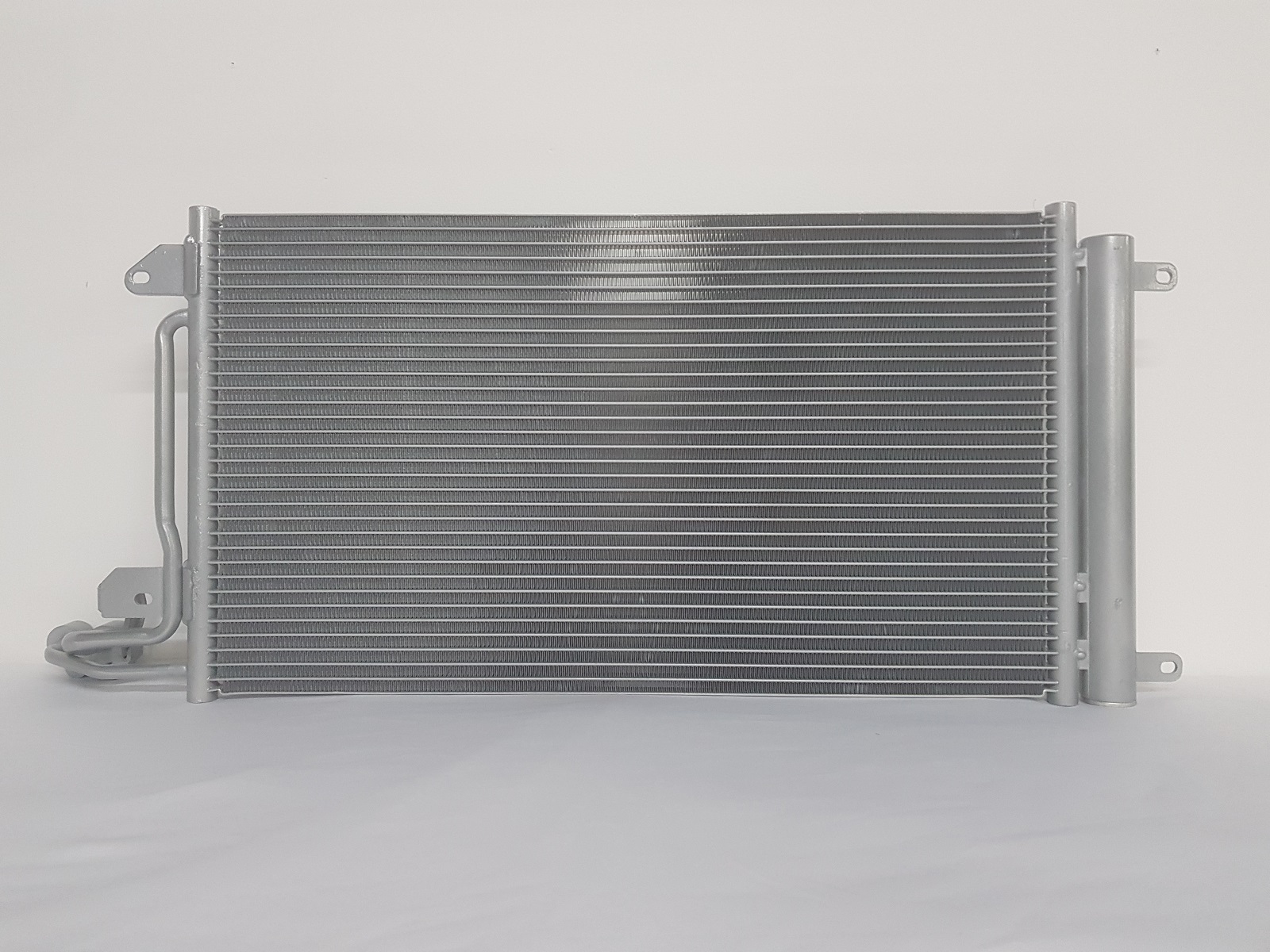

The condenser is a heat exchanger responsible for the refrigerant state change in the AC system.

The condenser is placed at the front of the car and is typically attached to other heat exchangers in the engine compartment like engine cooling radiator or intercooler.

The role of the condenser is to ensure that the state of the refrigerant changes from gaseous to liquid form. The change of state is called the condensation process where the refrigerant heat is extracted and exchanged with the ambient air.

Our condensers are carefully selected from the most reliable manufacturing sources available. All our condensers are zinc coated and are supplied with a three year warranty.

Core length: 575mm
Core width: 335mm
Core depth: 16mm
Port inner dia: 13.8mm / 14.9mm
Refrigerant: R134a / R1234YF
Material: Aluminium, corrosion protected

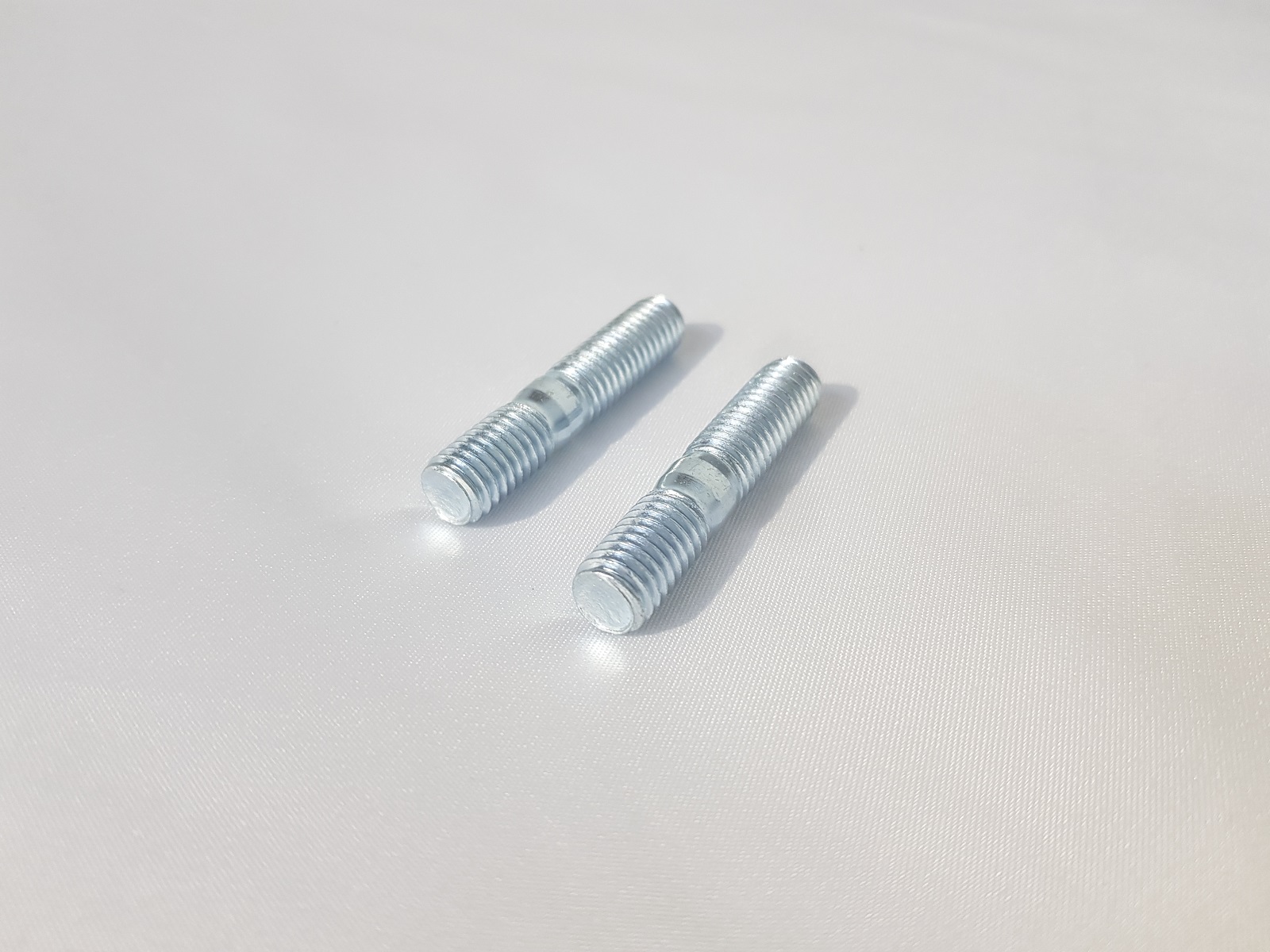

Included: With dryer, pipe fixing studs

Replaces OEM reference(s):
AUDI: 6R0820411A | AUDI: 6R0820411D | AUDI: 6R0820411G | AUDI: 6R0820411H | AUDI: 6R0820411J | SEAT: 6C0816411C | SEAT: 6R0820411A | SEAT: 6R0820411D | VW: 6R0820411A | VW: 6R0820411A | VW: 6R0820411B | VW: 6R0820411C | VW: 6R0820411D | VW: 6R0820411D | VW: 6R0820411S | VW: 6R0820411T | VW: 6R0820411Q

Replaces aftermarket reference(s):
AUTO AIR: 16-9007 | AVA: ST5038 | AVA: ST5038D | AVA: STA5038D | DELPHI: CF20137 | FRIGAIRE: 08103044 | FRIGAIRE: 08103044 | HELLA: 8FC351309131 | HELLA: 8FC351309131 | HELLA: 8FC351309134 | MAHLE: AC566000P | MAHLE: AC566000S | NISSENS: 940093 | NISSENS: 941047 | NRF: 35910 | STANDARD: F4AC1072 | WAECO: 8880400472
