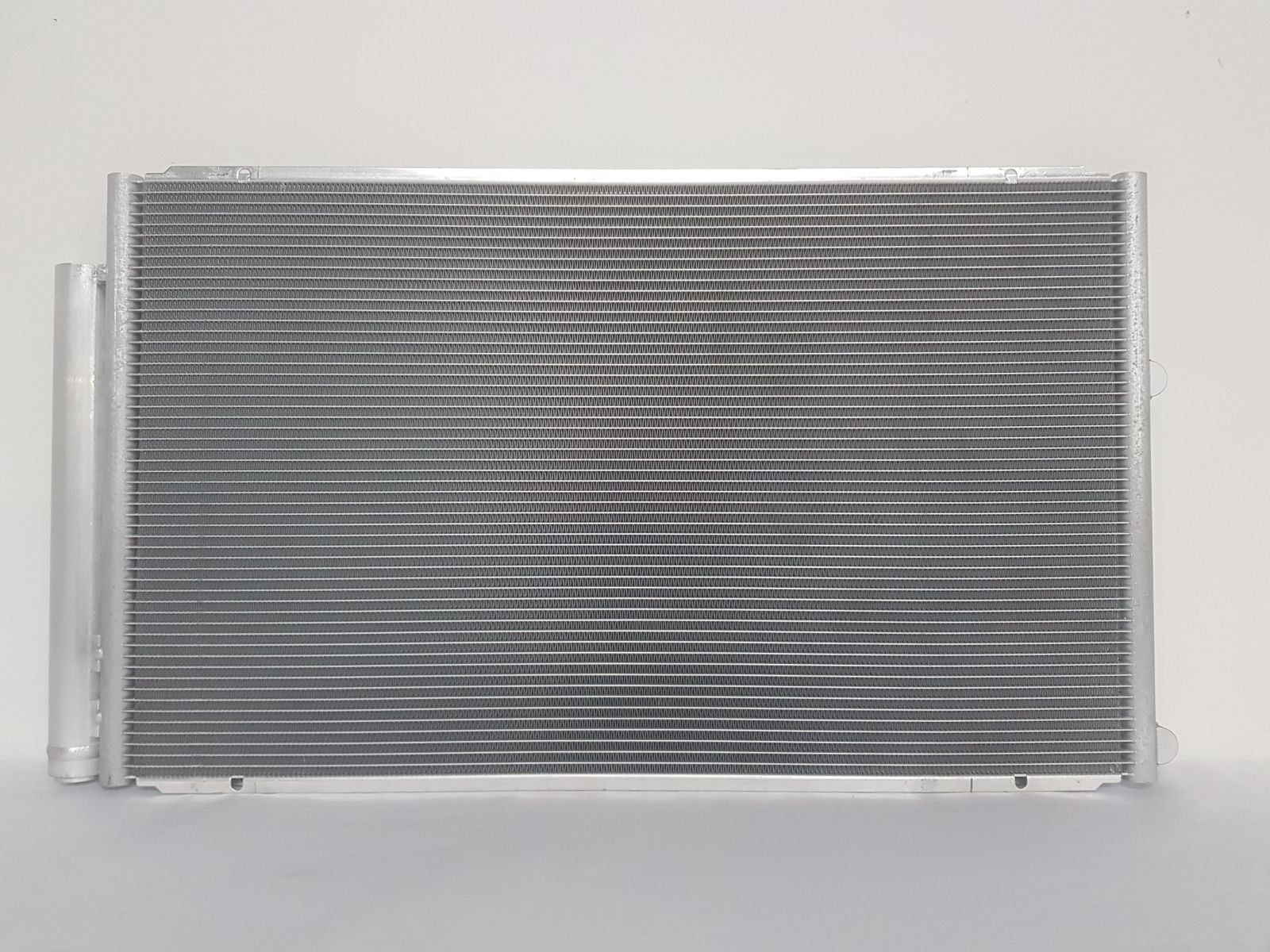

A4C Aircon Condenser CON8914

Description

The condenser is a heat exchanger responsible for the refrigerant state change in the AC system.

The condenser is placed at the front of the car and is typically attached to other heat exchangers in the engine compartment like engine cooling radiator or intercooler.

The role of the condenser is to ensure that the state of the refrigerant changes from gaseous to liquid form. The change of state is called the condensation process where the refrigerant heat is extracted and exchanged with the ambient air.

Our condensers are carefully selected from the most reliable manufacturing sources available. All our condensers are zinc coated and are supplied with a three year warranty.

This condenser fits the Toyota Prius 1.5 Hybrid from 2003 to 2009.

Core length: 560mm
Core width: 340mm
Core depth: 17mm

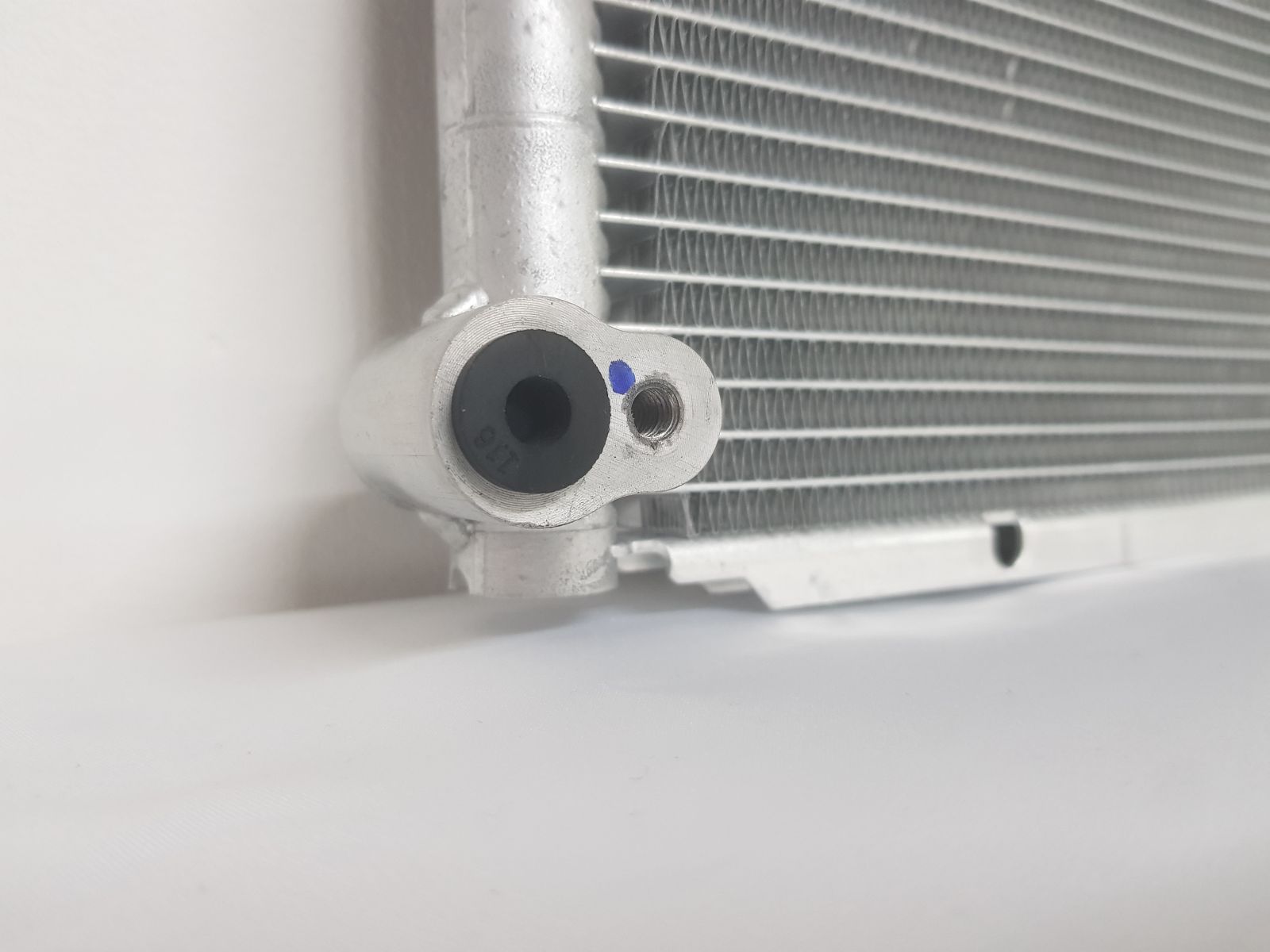

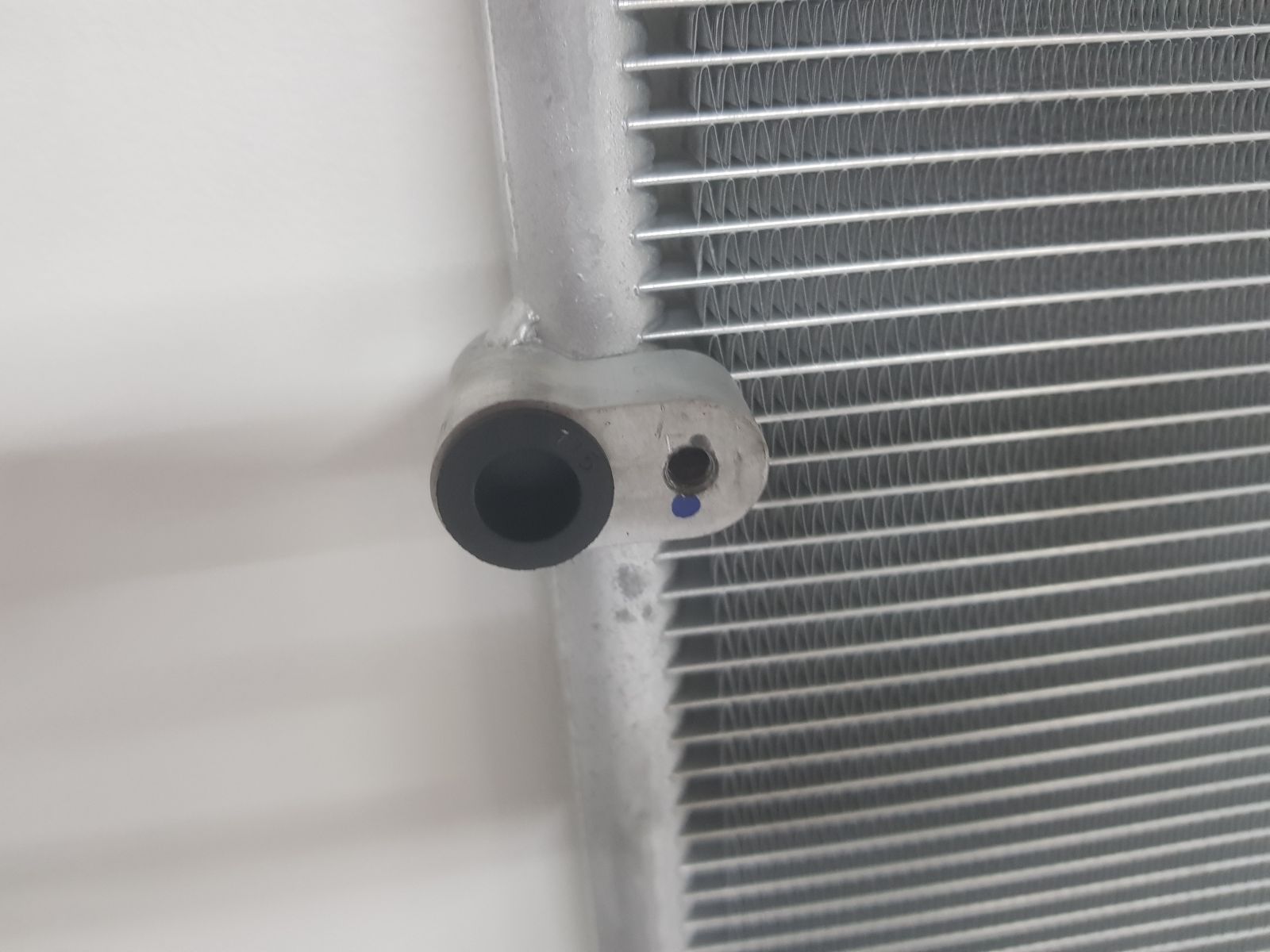

Port inner dia: 15.5mm / 10mm
Material: Aluminium, corrosion protected
Included: with dryer

Replaces OEM reference(s):
TOYOTA: 8845047020 | 88450-47020

Replaces aftermarket reference(s):
AUTO AIR: 16-8914 | AVA: TO5429 | AVA: TO5429D | FRIGAIRE: 08153031 | FRIGAIRE: 08153031 | FRIGAIRE: 8153031 | HELLA: 8FC351304781 | HELLA: 8FC351304781 | HELLA: 8FC351343561 | HELLA: 8FC351343564 | INTERMOTOR: 43264 | MAHLE: AC813000P | MAHLE: AC813000S | MOBILE AIR: MBA46689 | NISSENS: 940047 | NRF: 35601 | STANDARD: 43264 | STANDARD: F443264 | VALEO: 814158
